Hydraulic Scaling Tunnel Jumbo Drilling Rig XMPYT-60/325

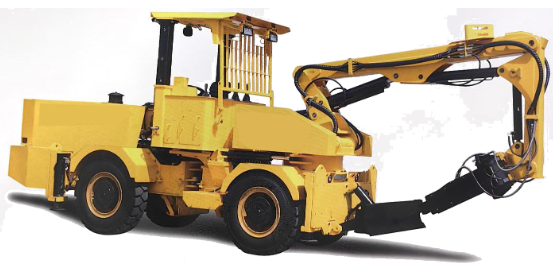

XMPYT-60/325 hydraulic scaling jumbo
Product Description
XMPYT-60/325 Wheel Type Hydraulic Scaling Jumbo is mainly suitable for scaling operations in meta lmine sand various underground engineering tunnels, tunnels, and tunnels.Its folding boom, rotary cylinder powered hydraulic breaker,and mechanical parallel structure enable the jumbo to scale at any direction on face, roof, side wall or ground in tunnel.In the meantime,its hydraulic system is designed with proportional pilot valve control that makes the jumbo flexible operation and smooth boom movement,thus can improve scaling efficiency and working safety greatly. The diesel engine power system is adopted, which is convenient and fast to move during transition and operation. The diesel engine adopts a well-known brand, with strong power, reliable operation,low pollution,and the emission standard meets the national standard.
Technical Parameter
| Model | XMPYT-73.6/325 | XMPYT60/325 |
| Transport Dimensions | 6250×1600×2015mm | 7700×1650×2200mm |
| Wheelbase | 2056mm | 2375mm |
| Min. ground clearance | ≥290mm | ≥220mm |
| Frame swing angle | ±8° | ±7° |
| Max. steering angle | ±35° | ±35° |
| Total Weight | 6.8T | 9.5T |
| Cab lifting and lowering | 420mm | 510mm |
| Cab pitching | 20° | |
| Maximum extension length | 6000mm | 6600mm |
| maximum scaling height | 6500mm | 6060mm |
| Hydraulic hammer swing angle | Left and right ±60°;Up and down ±90° | Up 50° down 65°;Left and right ±60° |
| Working arm swing angle | ±30° | ±30° |
| Gradeability | 14° | 14° |
| Turning radius | 4300 2025mm | 4900 2900mm |
| Rated power of diesel engine | 73.6/2400Kw/r/min | 60/2200Kw/r/min |
| Impact energy | 325J | 325J |
| Rod diameter | φ53mm | φ53mm |
Our Company & Service
With over two decades of experience, Glorytek Industry (Beijing) Co., Ltd. is a reputable integrated corporation specializing in the manufacturing and export of high-quality drilling equipment and parts. Our success is attributed to the invaluable support of our highly experienced R&D team and engineers, who ensure the successful completion of projects according to clients' specific requirements.
Situated on a vast area of 250,000 square meters, our factory boasts a construction area of approximately 150,000 square meters. Equipped with advanced machinery including machining equipment, CNC processing centers, friction welding machines, and testing equipment, we have over 200 sets of machinery and employ a dedicated workforce of more than 600 employees.
Our products have gained recognition in more than 60 countries worldwide, including Australia, Russia, South Africa, Malaysia, France, and the USA. We take pride in our global reach and the trust placed in us by customers across various industries.
Certificate
Customer Visit
Exhibition
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools
would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
