3NB-130 Well Rig Drilling Mud Pump High Pressure
3NB-130 Mud Pump for Drilling Rig
Product Description
Mud Pump for drilling rig is a crucial component that provides high-pressure pumping of drilling fluids or mud during drilling operations. It ensures the circulation of mud, which helps in cooling the drill bit, removing cuttings, and maintaining stability in the wellbore. Our Mud Pumps are designed with reliability and efficiency in mind, offering robust construction, optimal performance, and easy maintenance. With their compact size and powerful pumping capabilities, our Mud Pumps are essential for smooth and successful drilling operations in various industries.

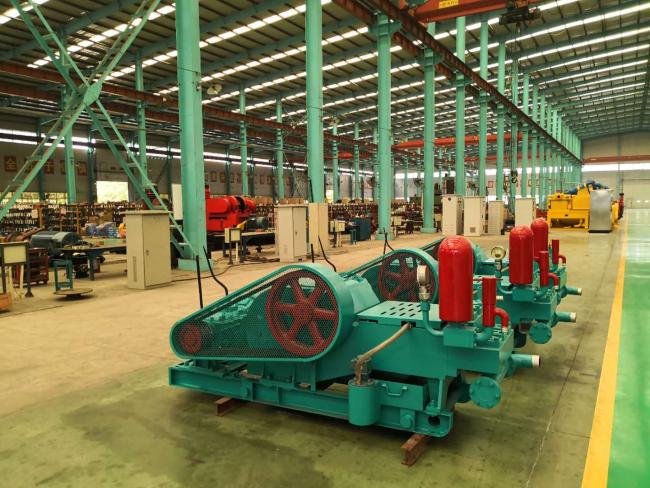

Product Picture
Technical Parameter
|
Technical Specifications
|
||||||
|
Model
|
3NB-130
|
|||||
|
Piston diameter (mm)
|
100
|
110
|
120
|
130
|
140
|
|
|
Displacement (L/S)
|
8.34
|
10.3
|
12.2
|
14.3
|
16.6
|
|
|
Pressure (Mpa)
|
10
|
8
|
7
|
6
|
5
|
|
|
Input speed (r/min)
|
565
|
|||||
|
Pump speed (spm)
|
135
|
|||||
|
Suction pump dia.
|
Φ152
|
|||||
|
Discharge pump dia.
|
Φ65
|
|||||
|
Piston Stroke (mm)
|
160
|
|||||
|
Input Power
|
Diesel Engine
|
130HP
|
||||
|
Electric Motor
|
Y315M-6 90KW
|
|||||
|
Dimension (mm)
|
2260*1380*1260
|
|||||
|
Weight (kg)
|
3174
|
|||||
