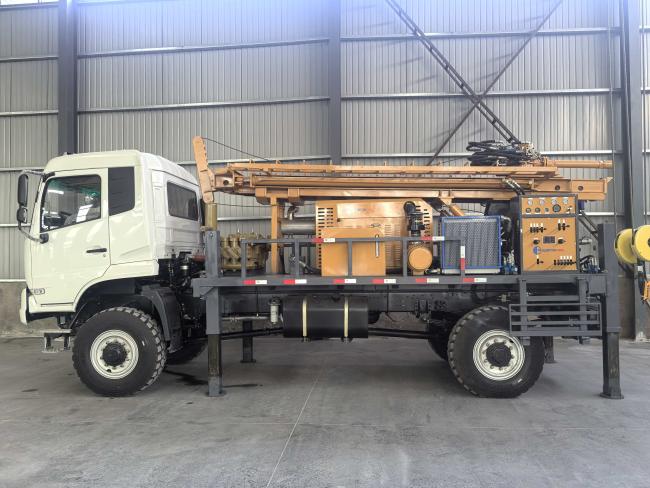

GL500T Hydraulic Truck Mounted Borehole Water Well Drill Rig For Deep Well
Product Description:
The GL500T water well drill rig, the preferred equipment for medium-to-large-scale drilling projects, demonstrates exceptional engineering adaptability and technical advantages. Its core performance lies in its wide borehole diameter range of 105-350 mm, flexibly addressing diverse geological challenges, from loose soil to hard rock. With a deep-hole drilling capability of 500 meters and a high torque output of 13,000-15,000 Nm, this rig ensures efficient and stable operation in complex formations.
Technical Highlights
Powertrain: A high-powered 194 kW engine provides continuous power and supports adjustable operating air pressures from 1.05 to 4.5 MPa, balancing energy efficiency and operational intensity.
Structural Design: A 6,600 mm long feed stroke and a 28-ton lifting capacity significantly reduce auxiliary work time and enhance construction continuity.
| Model | GL500T |
| Borehole Diameter | 105-350mm |
| Drilling Depth | 500m |
| Working air pressure | 1.05-4.5MPa |
| Air Consumption | 16-60m²/min |
| Lifting Capacity | 28T |
| Feeding Stroke | 6600mm |
| Rotary Speed | 75-150rpm |
| Rotary Torque | 13000-15000N.M |
| Engine Power | 194kW |
| Mud Pump | BW600/5 |
| Total Weight | 16800kg |
| Drill Pipe Length | 3m-6m |
| Dimensions | 8300x2500x3150mm |
Features
Core Performance Advantages
High-Efficiency Drilling Capability
With a maximum drilling depth of 500 meters and a hole diameter range of 105-350mm, it's suitable for deep wells and medium-to-large-scale projects. A rotational torque of 13,000-15,000 N·m allows it to handle hard rock formations (such as granite and basalt), improving operational efficiency in complex geological conditions.
Powerful Power System
Equipped with a Cummins 194kW engine, it provides stable power output and supports long, intensive operations. The dual-pump hydraulic system (referenced from similar models) reduces sticking and improves core crushing efficiency.
Support and Services:
We provide technical support and service for Water Well Drill Rig. Our service includes:
- Providing technical support and consultation for product installation and commissioning.
- Providing product operation and maintenance training.
- Providing quick response to solve customer's problems.
- Providing regular maintenance and inspection services.
- Providing product upgrade services when applicable.
Packing and Shipping:
Packaging and Shipping for Water Well Drill Rig:
We will ensure the packaging materials are secure and fit for a long-distance shipment. The Water Well Drill Rig will be packed in containers.
It is normally load with 40FR container.
FAQ:
- Q: What is the Brand Name of the Water Well Drill Rig?
- A: The Brand Name of the Water Well Drill Rig is Glorytek.
- Q: What is the Model Number of the Water Well Drill Rig?
- A: The Model Number of the Water Well Drill Rig is GL500T.
- Q: Where is the Water Well Drill Rig produced?
- A: The Water Well Drill Rig is produced in China.
- Q: What certifications does the Water Well Drill Rig have?
- A: The Water Well Drill Rig is certified by SGS, CE, and TUV.
- Q: How many Water Well Drill Rigs can be produced per month?
- A: We can produce up to 20 sets of Water Well Drill Rigs per month.
