Gl600s Top Hammer Crawler Type Water Well Drill/Drilling Rig for 600m Depth
Price:
Negotiable
MOQ:
1
Delivery Time:
20 days
Brand:
Glorytek
Product Description

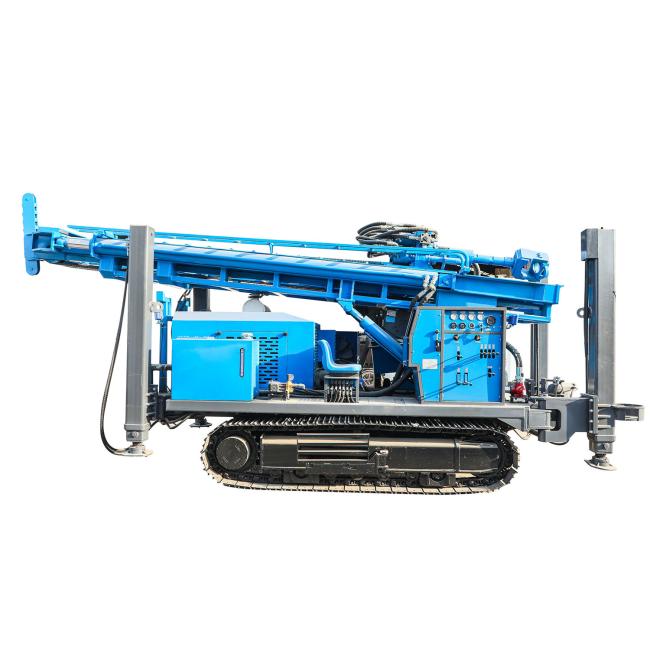

GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter
GL600S Track Mounted DTH Water Well Drill Rig Machines For Borehole
The GL600S crawler water well drill rig machine is designed for geothermal, industrial, and agricultural drilling applications. Featuring a durable steel crawler chassis for easy mobility and a powerful 176kw diesel engine, this rig delivers exceptional drilling capacity.
Technical Specifications
| Parameter | Value |
|---|---|
| Max Drilling Depth (m) | 600 |
| Drilling Diameter (mm) | 105-500 |
| Air Pressure (Mpa) | 1.05-4.5 |
| Air consumption | 16-60m³/min |
| Rod Length (m) | 3.0 / 6.0 |
| Rod Diameter (mm) | 89-102-114 |
| Main Shaft Pressure (T) | 14 |
| Lifting Force (T) | 35 |
| Fast lifting speed | 24m/min |
| Rotary Torque (N.m) | 13000 |
| Rotary Speed (r/min) | 30/170 |
| Winch Lifting Force (T) | 5 |
| High leg stroke (M) | 1.5-1.65 |
| Moving Speed (km/h) | 3.5 |
| Uphill Angle (°) | 21 |
| Weight of the Rig (T) | 13 |
| Engine | 191KW |
| Overall Dimensions (MM) | 5800*2200*2550 |
| Working Condition | loose layer or bedding rock |
| Drilling Method | Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
Customer Visiting
Company Profile
About Glorytek Industry
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to clients' requirements. As an important member of "Sundrill Corporation," our 250,000 square meter facility includes machining machinery, CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of equipment and 600 employees, our products have been exported to more than 60 countries worldwide.
Warranty Information
For drill rig main parts, if quality issues are confirmed, we provide free replacement within one year after shipping.
