16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
Glorytek
Product Description
GL-160 Mini HDD Drill Rig
Product Description
1-Technical Parameter
| Main Technical Parameters | Configuration List | ||
| Model: | GL-160 Mini HDD Drill Rig | HDD drill rig (standard configuration) |
1set |
| Rig weight: | 2.15t | ||
| Dimensions (L×W×H): | 3800*1600*1800mm | Transmission and locating instrument (optional) |
1set |
| Engine power: | 55kw | ||
| Max. push & pull force: | 160N.M/16TON | Pilot bit (standard configuration) |
1pc |
| Traveling form: | remote control | ||
| Walking speed: | 2km/h | Male and female pulling eye (standard configuration) |
1set |
| Water injection system: | 160 type three-cylinder mud pump | ||
| Max. pressure of mud pump: | 2.8MPa | Drum Reamer (standard configuration) |
2pcs |
| Max. flow of mud pump: | 160L/min | ||
| Entry angle: | 28° | Swivel(15T) (standard configuration) |
1pc |
| Departure angle: | 20° | ||
| Climbing ability: | 35° | Drill rod (standard configuration) |
2m/pc, 50pcs, for 100m |
| Drill rod diameter: | 50mm | ||
| Drill rod length: | 2m | ||
Related Products
Packing and Transport
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
After-sale Warranty
(1) Within the period of the first year after delivery, the main parts of Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?

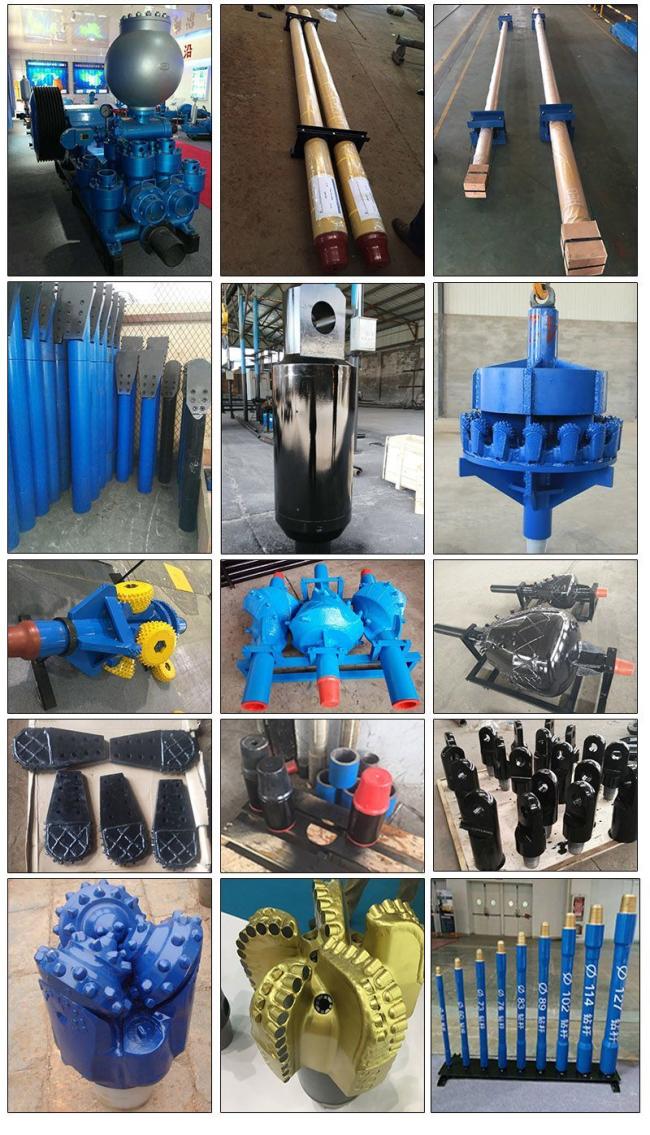

A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
(1) Within the period of the first year after delivery, the main parts of Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
