Single Head Steel Coil Uncoiling Machine Welded Pipe Production Decoiler Machine
Uncoiler is one of the essential and important equipment in welded pipe production line. One of its functions is to support the coil by tightening the inner hole of the coil; The other is to feed the steel strip head into the leveler through rotation with the cooperation of the straightener. Therefore, the performance of uncoiler is very important to the whole production line. In many years of design practice, the structure of the uncoiler has been continuously optimized and improved, so that the performance of the uncoiler has been improved. The uncoiler spindle has two functions: one is to drive the steel coil to rotate; The other is the tension support of steel coil.
| NO. | Product Name | Model | Steel Strip Width(mm) | Steel Strip Thickness(mm) |
| 1 | Single-Head manual uncoiler | ≤250 | ≤3 | |

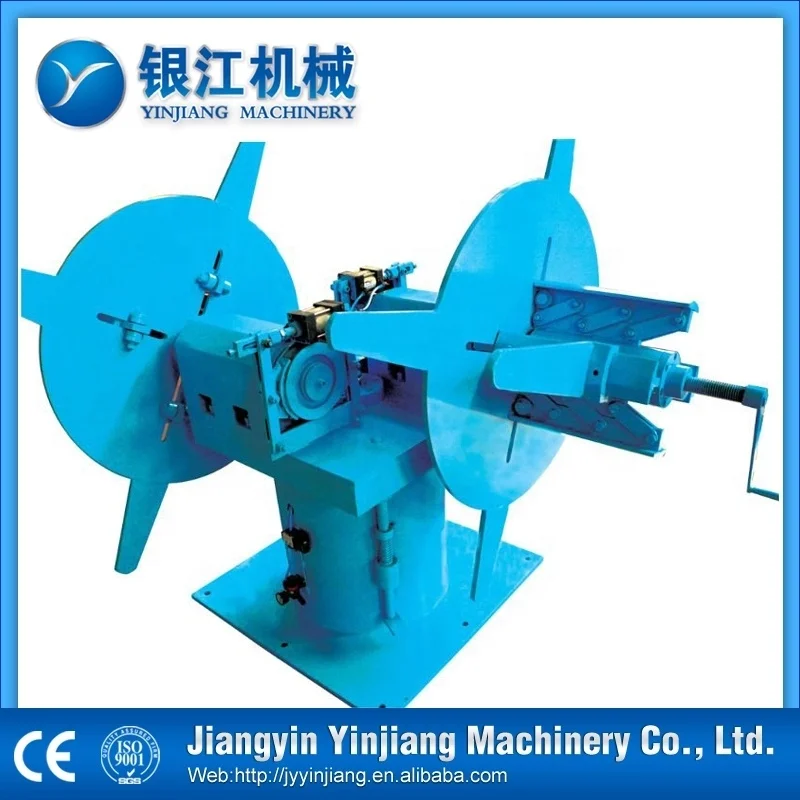

| 2 | Double-Head manual uncoiler | YJ32 | ≤100 | ≤4 |
| YJ60 | ≤200 | ≤4 | ||
| 3 | Single-head simple uncoiler | YJ400 | ≤420 | ≤3 |
| YJ550 | ≤550 | ≤3 | ||
| YJ750 | ≤750 | ≤3 | ||

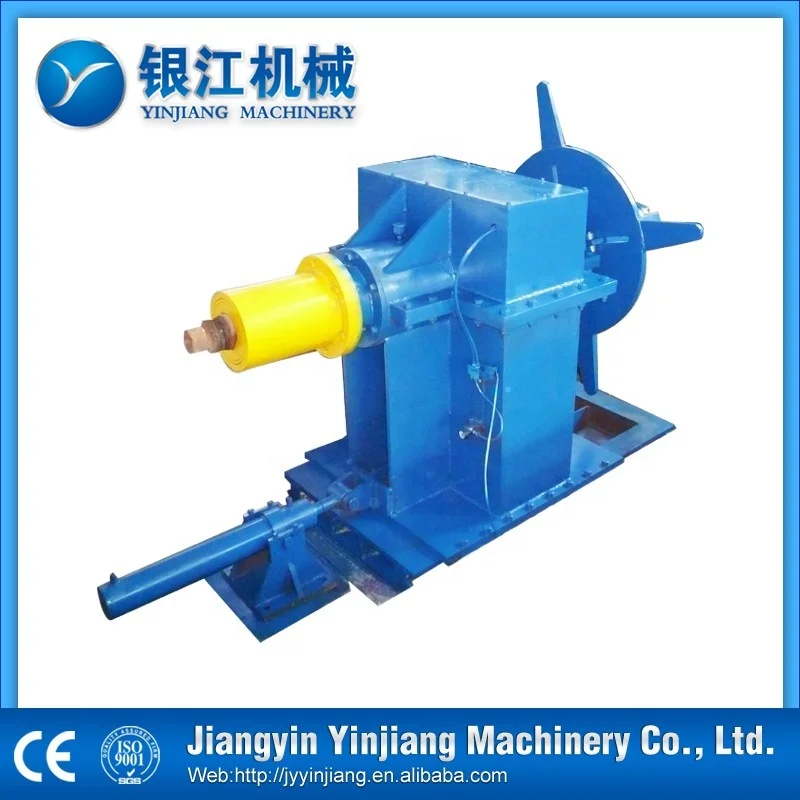

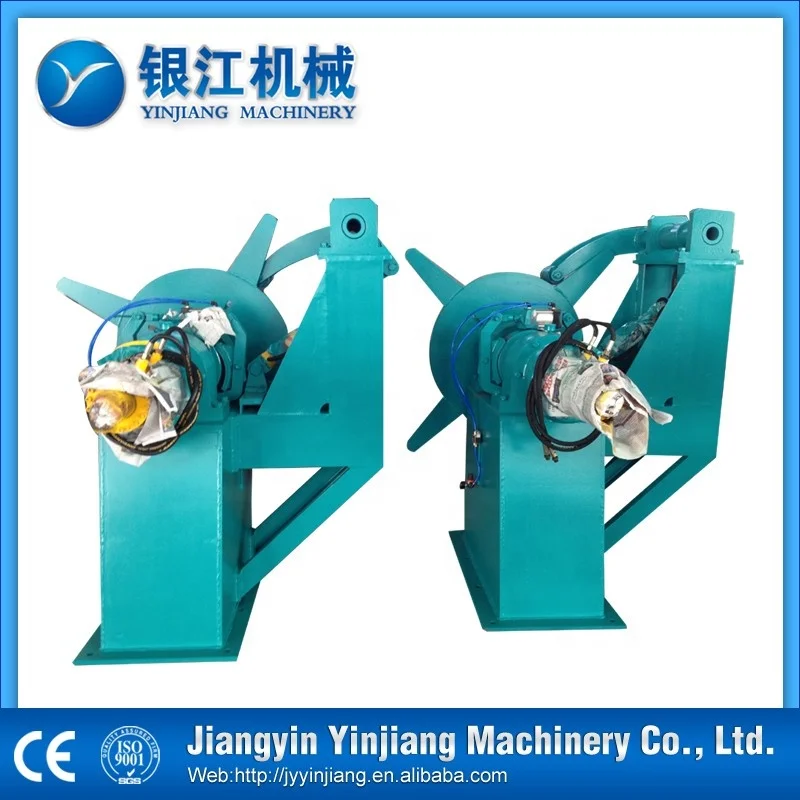

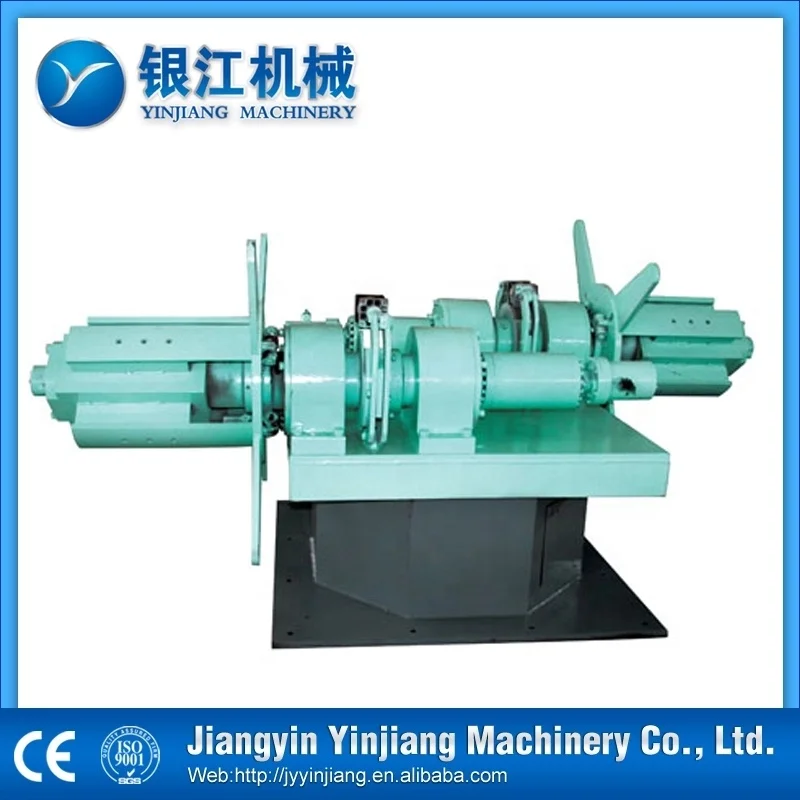

| 4 | Hydraulic uncoiler | double-head | ≤1050 | ≤10 |
| single-head | ≤1050 | ≤10 |
