5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA

             5V 3A 12V 2.5A 12V 2A 24V 1A AC DC Power Supply UL FCC CE SAA KC PSE CCC UKCA Certificates

About Yingyuan:

Shenzhen Yingyuan electronics Co.Ltd., was found in 2006 isdedicated to design manufacturing /OEM /ODM of various power supply circuit boards,

providing maturesolution,cost-efficient SKD&CKD of the whole set ofmaterials,Including Mobile phone charger,Car Chargerand Wall Socket charger .

We are dedicating to makesolution/product according to customer's requirement,fullyconsidering customer's need about marketing,quality,costand

strategy.

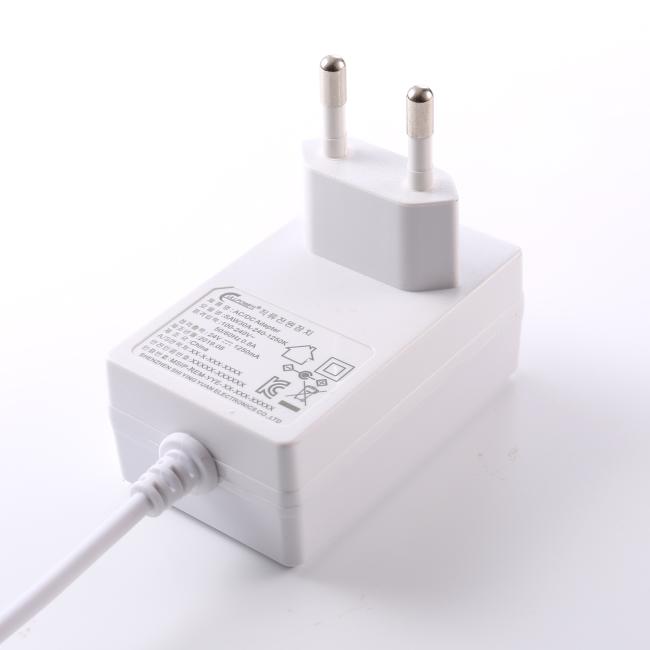

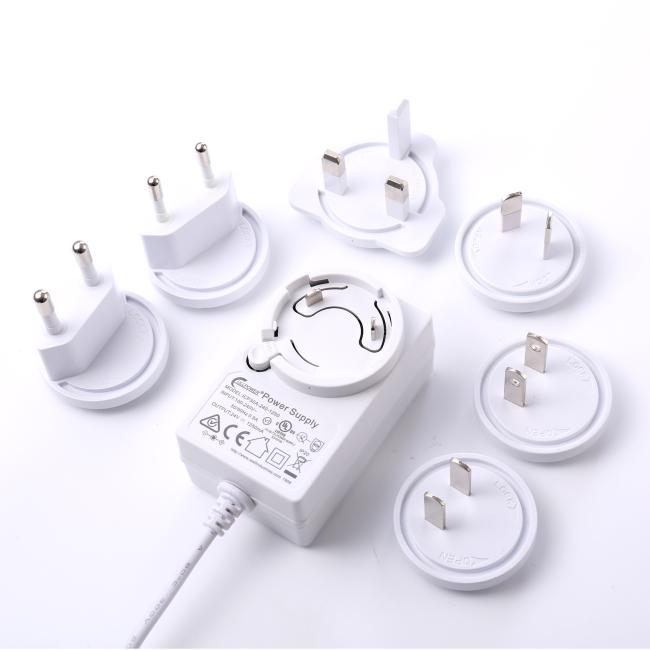

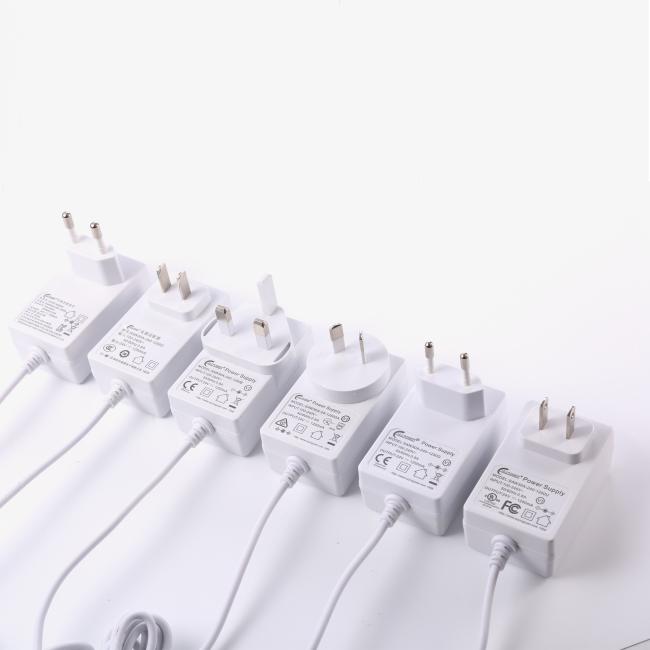

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-30 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	SAW30G1-090-2000		9V	2000mA	90mV		6 L
	SAW30G1-090-3000		9V	3000mA	90mV		6 L
	SAW30G1-120-2000		12V	2000mA	120mV		6 L
	SAW30G1-120-2500		12V	2500mA	120mV		6 L
	SAW30G1-180-1000		18V	1000mA	150mV		6 L
	SAW30G1-240-1000		24V	1000mA	150mV		6 L
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.8A Max		Standby Power		0.3W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		9.0V-36.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA		Cooling		Convection
Output Power Range		30W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		71.2mm *43.0mm *29.2mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Shipping

FQA:

1, Who are We?
We are based in Guangdong ,China Start from 2006,Sell to SoutheastAsia(40.00%),South America(20.00%),Eastern Europe(20.00%),MidEast(20.00%).There are total about 50-100 People in our factory.
2, Why should we buy from you ?
1, We can make OEM&ODM customized products2,Fast Shipping from place order to get products3,Stock available
4, Drop Shipping
5, Quality Warranty and prompt After-sale service
3, What can you buy From us?
Phone&Car Charger |solution SKD&CKD|Data cables and other Mobile PhoneAccessories
4, How can we guarantee quality?
1. Always a pre-production sample before mass production2.Always final inspection before shipment
5, What is you price &payment Terms :
1. Normally price Terms: FOB(free on board),ClF(cost insurance andfreight),EX-work
2. Payment:TT,West Union ,Credit Card and ect
