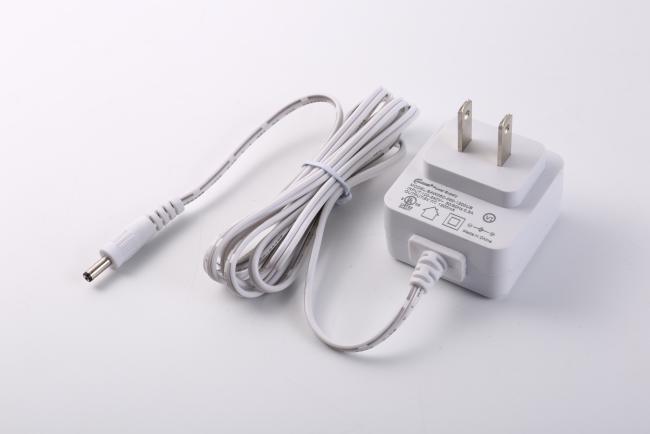

ABS PC 6W AC DC Power Adapter 5V 0.5A / 1A / 1.2A 12V 0.5A 24V 0.25A
Price:
Negotiable
MOQ:
1000PCS
Delivery Time:
30 working days
Brand:
Fullpower
Product Description
6W 5V0.5A 5V1A 5V1.2A 12V0.5A 24V0.25A AC DC Power Adapter
| Data-sheet |
| FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | |||||
|
v EFFICIENCY VI v 0-6 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT |
v UL v FCC v ROHS v REACH
|
 |
|||||
| TYPICAL MODEL LIST | |||||||
| I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency | ||
|
90 - 264V 47 - 63HZ |
SAW06A1-050-0500 | 5V | 500mA | 30mV | 6 VI | ||
| SAW06A1-050-1000 | 5V | 1000mA | 40mV | 6 VI | |||
| SAW06A1-050-1200 | 5V | 1200mA | 50mV | 6 VI | |||
| SAW06A1-090-0500 | 9V | 670mA | 70mV | 6 VI | |||
| SAW06A1-120-0500 | 12V | 500mA | 50mV | 6 VI | |||
| SAW06A1-240-0250 | 24V | 250mA | 50mV | 6 VI | |||
| INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | ||||||
| Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | ||||
| Input Frequency | 47〜63Hz | Efficiency | VI | ||||
| Input Current | 1.2A Max | Standby Power | 0.1W MAX | ||||
| Inrush Current | 40A Max | Leakage Current | 0.25mA MAX | ||||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||||
| Output Voltage Range | 5.00V-24.00V | Operating Temperature | 10°C~40°C | ||||
| Output Current Range | 100mA-1200mA | Cooling | Convection | ||||
| Output Power Range | 6.00W Max | Temperature Coefficient | 0.05%/°C | ||||
| Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | ||||
| Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | ||||
| Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | |||||
| Turn On Time | 20-30mS normal | Physical Specifications | 43.2mm *40.2mm *22.2mm | ||||
| Line Regulation | 1% max | SAFETIES STANDARD | |||||
| Output Regulation | ±5% | Safeties Standard | 62368 / 60950/ 60335/ 61558/ 60065 | ||||
|
Factory Certification
ISO 9001 Quality management system
ISO 14001 Environment management system
BSCI Business Social Compliance Initiative Certificate
|
 |
|
Safety Certificates
UL, FCC, CB, CE, UKCA, EAC, CCC, PSE, KC, KCC, RCM, C-TICK, SAA, BSMI, BIS etc
|
|
Powerful Customers |
 |
| FQA |
| Q: What is your MOQ? A: Usually MOQ is 1000pcs for our products .But we can discuss if you need some special support. Q: How about warranty? A : Warranty is 3 years . All of our company products are under 6 strict quality test before shipping out . Q: What is the payment methord ? A: 1.Small quantity: 100% advanced when we confirm the order. 2. Large quantity: Client need to pay deposit when the order is confirmed, and the balance should be paid before delivery. 3. We accept T/T, Paypal, and Western Union and so on . Q : what is the lead time ? A : Samples are 3-5 days . Mass products Usurally 25-30 working days Q: How about sample? For free? A: YES! Generally we offer 1-3PCS sample(s) for your test FOR FREE, but you need to bear the freight cost. If your sample quantity is more than 3PCS, we will charge sample fee. |
