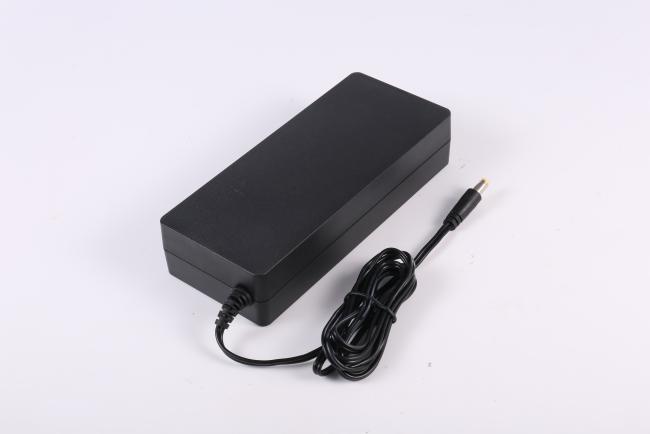

120W 130W Household EV Battery Charger For Scooters E Bike Electric Motorcycle
120W 130W battery charger for household batteries Scooters e-bike electric motorcycle
• Max Output Power: 130W
• Typical output: 12V8A, 24V4.5A, 36V3A, 48V2.5A etc
• ETL,FCC,CE,CB,UKCA,KC,PSE,CCC,EAC etc certifications for different countries
• Meet the US DoE level VI, EU CoC Tier 2 efficiency standards
• Certificate standard contain IEC61558, IEC62368, IEC60335 etc
|
Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China |
||||
| Specifications | PRODUCTS PICTURE | |||
|
130W BATTERY CHAEGER l AC Input Voltage Range:AC100V-AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:8A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)162х(W)70х(H)35 l Net Weight: 0.4kg |
 |
|||
| TYPICAL MODEL LIST | ||||
| Charger Model | Rated Input Voltage | Barrery Standard Voltage | Maximum charging Current | Maximum charging Current |
| AP-PN130CH01460080 | 100-240 | 12 | 14.6 | 8 |
| AP-PN130CH02920045 | 100-240 | 24 | 29.2 | 4.5 |
| AP-PN130CH04200030 | 100-240 | 36 | 42 | 3 |
| AP-PN130CH05460025 | 100-240 | 48 | 54.6 | 2.5 |
| AP-PN130CH01200080 | 100-240 | 12 | 14.7 | 8 |
| AP-PN130CH02400045 | 100-240 | 24 | 29.4 | 4.5 |
| AP-PN130CH03600030 | 100-240 | 36 | 42 | 3 |
| AP-PN130CH04800025 | 100-240 | 48 | 58.8 | 2.5 |
| SPECIFICATIONS | ||||
| AC Input Voltage Range: | AC100V-AC240V | Shock & Vibration: | 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes | |
| AC Input Frequency: | 45～65HZ | Operating Temperature: | -20ºC～45ºC(-20ºF～+113ºF) | |
| AC Power Factor Correction: | ≥0.98 | Storage Temperature: | -40ºC～+85ºC(-40ºF～185ºF) | |
| Output Voltage: | 12V～60V | Dimensions (mm): | (L)162х(W)70х(H)35 | |
| Output Current: | 8A(Max) | Net Weigh: | 0.4kg | |
| Full Load Efficiency: | ≥90% | certifications | UL CE FCC RoHs | |
| Protections |
Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it |
|||
|
Short- circuit Protection When Short Circuit happened ,charger will turn off |
||||
|
Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery |
||||
|
Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically |
||||
| Application |
Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment |
|||
深圳市盈源电子有限公司
Features:
1: Innovation provides constant true voltage automatically with low consumption.
2: Built with input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
3: This product can use different charging modes according to different types of battery and can trace the charging process correctly.
