E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable
90W 100W intelligent household battery charger for rechargeable batteries E-bike Scooters
• Max Output Power: 100W
• Typical output: 12V14.7A, 24V3.5A, 36V2.5A, 48V1.8A etc
• ETL, FCC, CE, CB, UKCA etc certifications for different countries
• Meet the US DoE level VI, EU CoC Tier 2 efficiency standards
• Certificate standard contain IEC61558, IEC62368, IEC60335 etc
|
Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China |
||||

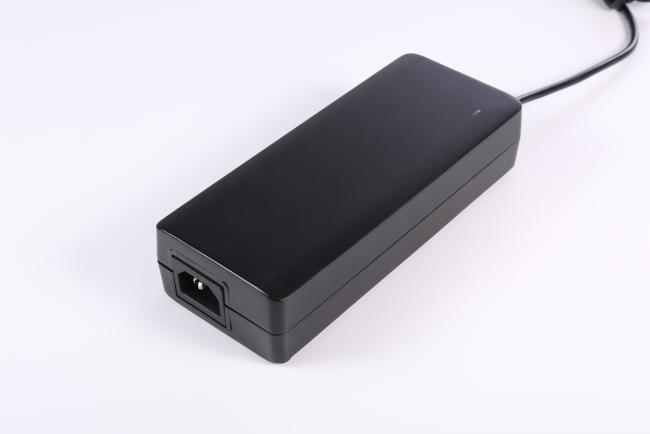

| Specifications | PRODUCTS PICTURE | |||
|
100W BATTERY CHAEGER l AC Input Voltage Range:AC100V～AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:7A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)141х(W)60х(H)32 l Net Weight: 0.35kg |
 |
|||
| TYPICAL MODEL LIST | ||||
| Charger Model | Rated Input Voltage | Barrery Standard Voltage | Maximum charging Current | Maximum charging Current |
| AP-PN100CH01460070 | 100-240 | 12 | 14.6 | 7 |
| AP-PN100CH02920035 | 100-240 | 24 | 29.2 | 3.5 |
| AP-PN100CH04200025 | 100-240 | 36 | 42 | 2.5 |
| AP-PN100CH05460020 | 100-240 | 48 | 54.6 | 2 |
| AP-PN100CH01200070 | 100-240 | 12 | 14.7 | 7 |
| AP-PN100CH02400035 | 100-240 | 24 | 29.4 | 3.5 |
| AP-PN100CH03600025 | 100-240 | 36 | 42 | 2.5 |
| AP-PN100CH04800018 | 100-240 | 48 | 58.8 | 1.8 |
| SPECIFICATIONS | ||||
| AC Input Voltage Range: | AC100V～AC240V | Shock & Vibration: | 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes | |
| AC Input Frequency: | 45～65HZ | Operating Temperature: | -20ºC～45ºC(-20ºF～+113ºF) | |
| AC Power Factor Correction: | ≥0.98 | Storage Temperature: | -40ºC～+85ºC(-40ºF～185ºF) | |
| Output Voltage: | 12V～60V | Dimensions (mm): | (L)141х(W)60х(H)32 | |
| Output Current: | 7A(Max) | Net Weigh: | 0.35kg | |
| Full Load Efficiency: | ≥90% | certifications | UL CE FCC RoHs | |
| Protections |
Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it |
|||
|
Short- circuit Protection When Short Circuit happened ,charger will turn off |
||||
|
Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery |
||||
|
Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically |
||||
| Application |
Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment |
|||
深圳市盈源电子有限公司

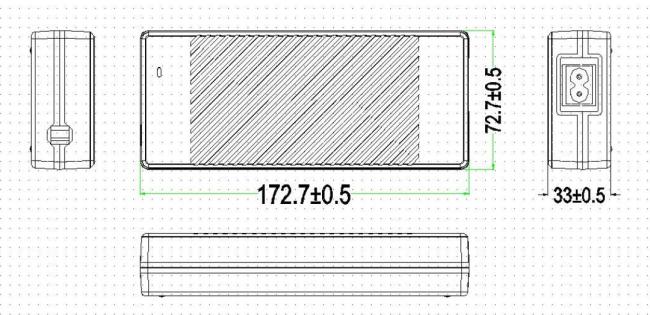

| MECHANICAL SPECIFICATION |
 |
