AAA 3.7V 6W Plug In Battery Charger Universal EK US EU UK Plugs
Price:
Negotiable
MOQ:
1000PCS
Delivery Time:
30 working days
Brand:
Fullpower
Product Description
6W Aaa Battery Charger All Battery Charger Universal 3.7v Battery Charger Plug In
• Output Power Range: 1W-6W
• Safety Certification: CE/GS/CB/KC/KCC/EAC
• Energy Efficiency: DoE VI, EU CoC Tier 2
• Protection: Short Circuit Protection, OTP, Other, Overvoltage, OCP
• AC plug: EK/US/EU/UK wall mount type
• Usage: Mobile Phone, Set top box, recorder, TWS products
| Specification |
| FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | |||||
|
v EFFICIENCY VI v 0-6 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT |
v UL, FCC v GS,CB,CE,UKCA v PSE,CCC,RCM,KC v BIS,BSMI v ROHS,REACH v DOE
|
 |
|||||
| TYPICAL MODEL LIST | |||||||
| I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency | ||
|
90 - 264V 47 - 63HZ |
SAW06D-050-0500 | 5V | 500mA | 30mV | VI 6 | ||
| SAW06D-050-1000 | 5V | 1000mA | 40mV | VI 6 | |||
| SAW06D-050-1200 | 5V | 1200mA | 50mV | VI 6 | |||
| SAW06D-090-0500 | 9V | 670mA | 70mV | VI 6 | |||
| SAW06D-120-0500 | 12V | 500mA | 50mV | VI 6 | |||
| SAW06D-240-0250 | 24V | 250mA | 50mV | VI 6 | |||
| INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | ||||||
| Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | ||||
| Input Frequency | 50〜60Hz | Efficiency | VI | ||||
| Input Current | 0.3A Max | Standby Power | 0.1W MAX | ||||
| Inrush Current | 40A Max | Leakage Current | 0.25mA MAX | ||||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||||
| Output Voltage Range | 5V-24V | Operating Temperature | 10°C~40°C | ||||
| Output Current Range | 100mA-1200mA | Cooling | Convection | ||||
| Output Power Range | 6W Max | Temperature Coefficient | 0.05%/°C | ||||
| Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | ||||
| Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | ||||
| Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | |||||
| Turn On Time | 20-30mS normal | Physical Specifications | ~mm *~mm *~mm | ||||
| Line Regulation | 1% max | SAFETIES STANDARD | |||||
| Output Regulation | ±5% | Safeties Standard | 62368 / 60950/ 60335/ 61558/ 60065 | ||||

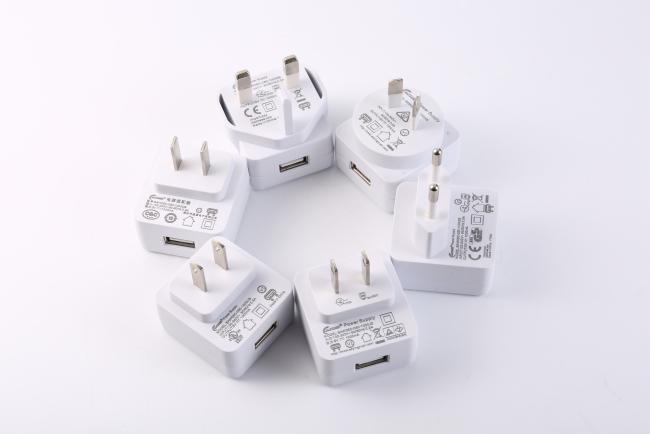

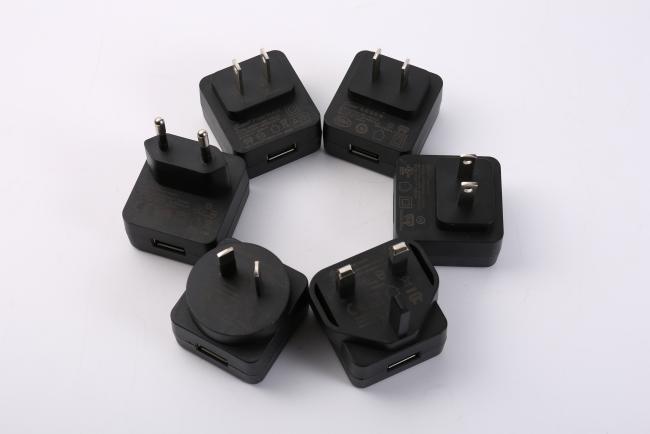

| Product Pictures |
|
|
FAQ
Q: Are you a manufacturer?
A: Of course we are a famous manufacturer which in ShenZhen,China found in 2005.Welcome to visit our factory in any time.
Q: How about your warranty of the ac adapter ?
A : Generally we offer 3-year warranty for our products. Quality is the most important for long-term business partnership.
Q: How can I finish my payment?
A: T/T, L/C, Western Union are all acceptable, PayPal is also OK.
Q: How can I get detailed specifications about this product? Do you have catalogue and price list?
A: We have all the specifications, catalogues and price lists for each model.
A: Of course we are a famous manufacturer which in ShenZhen,China found in 2005.Welcome to visit our factory in any time.
Q: How about your warranty of the ac adapter ?
A : Generally we offer 3-year warranty for our products. Quality is the most important for long-term business partnership.
Q: How can I finish my payment?
A: T/T, L/C, Western Union are all acceptable, PayPal is also OK.
Q: How can I get detailed specifications about this product? Do you have catalogue and price list?
A: We have all the specifications, catalogues and price lists for each model.
Q: How about sample? For free?
A: YES! Generally we offer 1-3PCS sample(s) for your test FOR FREE, but you need to bear the freight cost.
