15 Minute AA AAA 2 Bay 18650 Battery Charger D Cell 36W Black Color
36W 15 Minute Battery Charger 2 Bay 18650 Battery Charger D Cell Battery Charger Aa Aaa Battery Charger
| Certification | |
| Factory | IS09001, ISO14001, BSCI |
| EMS | EN55022, EN55014, EN55032, EN55035, EN61000 |
| LVD | EN62368, EN61558, EN60335 |
| UKCA | EN62368, EN60335, EN61558 |
| GS | IEC62368, IEC60335 |
| CB | IEC62368, IEC60335 |
| UL/cUL | UL62368, UL1310 |
| FCC | FCC Part 15 |
| PSE | J60335, J55014, J3000, J62368 |
| SAA | AS/NZS 60950, AS/NZS 61558, AS/NZS 62368 |
| IRAM | IEC60950 |
| Data-sheet |
| FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | |||||
|
v EFFICIENCY VI v 30-36 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT |
US Type v UL v CB v FCC v ROHS v REACH |
 |
|||||
| TYPICAL MODEL LIST | |||||||
| I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency Level | ||
|
90 - 264V 47 - 63HZ |
SAW36E-050-4000 | 5V | 4000mA | 90mV | VI SIX | ||
| SAW36E-050-5000 | 5V | 5000mA | 90mV | VI SIX | |||
| SAW36E-050-6000 | 5V | 6000mA | 120mV | VI SIX | |||
| SAW36E-180-2000 | 18V | 2000mA | 120mV | VI SIX | |||
| SAW36E-120-3000 | 12V | 3000mA | 150mV | VI SIX | |||
| SAW36E-240-1500 | 24V | 1500mA | 150mV | VI SIX | |||
| INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | ||||||
| Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | ||||
| Input Frequency | 47〜63Hz | Efficiency | VI | ||||
| Input Current | 1.3A Max | Standby Power | 0.3W MAX | ||||
| Inrush Current | 40A Max | Leakage Current | 0.25mA MAX | ||||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||||
| Output Voltage Range | 5V-48V | Operating Temperature | 10°C~40°C | ||||
| Output Current Range | 100mA-6000mA | Cooling | Convection | ||||
| Output Power Range | 48.0W Max | Temperature Coefficient | 0.05%/°C | ||||
| Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | ||||
| Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | ||||
| Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | |||||
| Turn On Time | 20-30mS normal | Physical Specifications | 97.5mm *50.5mm *32.5mm | ||||
| Line Regulation | 1% max | SAFETIES STANDARD | |||||
| Output Regulation | ±5% | Safeties Standard | 62368 / 60950/ 60335/ 61558/ 60065 | ||||
|

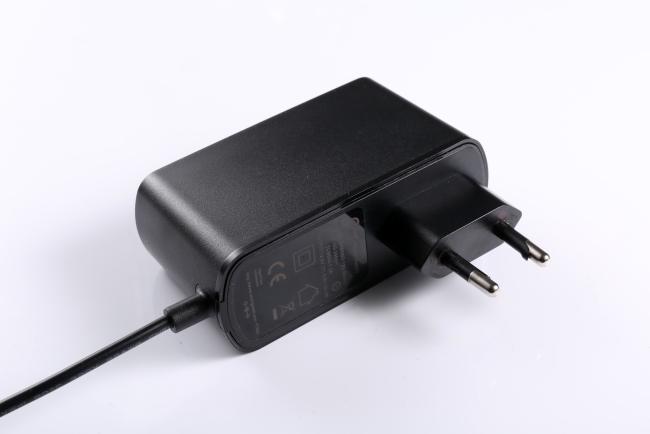

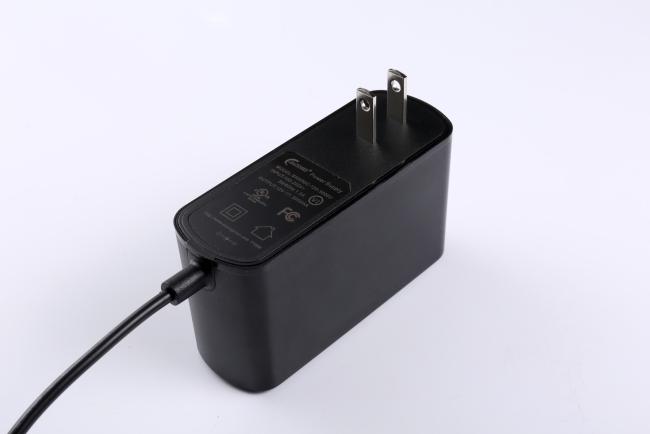

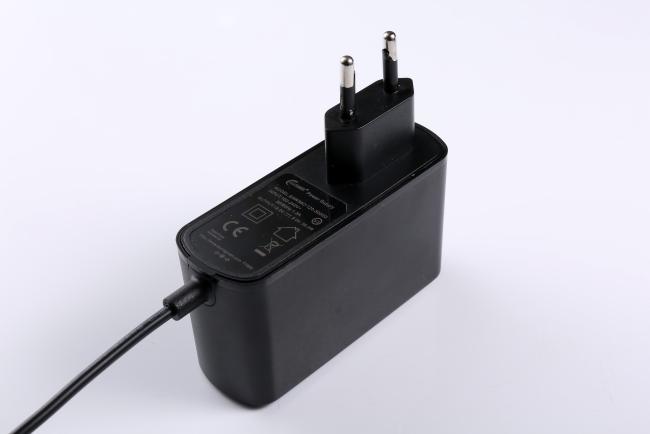

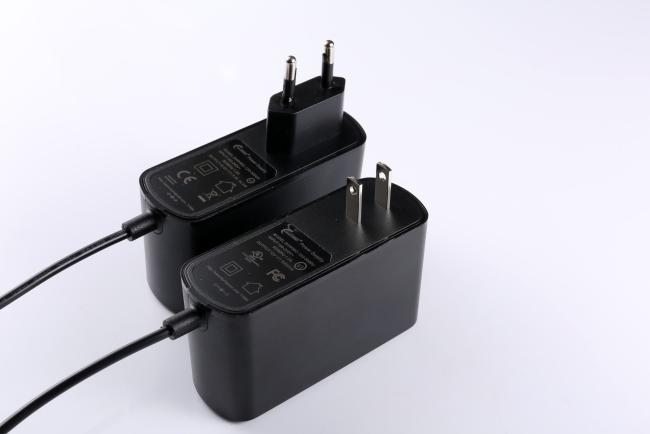

Product Pictures |
|
|
| FQA |
Q: What is your advantage?
A : Our price is cheaper 20% than same level factory.
Q: What is the payment methord ?
A: T/T, L/C, Western Union, PayPal.
Q: What about your quality?
A : Less than 0.1% defective rate, more that 3 years warranty.
Q : What about your lead time?
A : About 30 days, urgent order will try to push ahead.
Q: What about sample?
A: Sample lead time is about 5-7 days, less value sample can be free.
