Liquid Dosing Mixing System For Chemical Industry
Liquid dosing mixing system for chemical industry
Product Application
This beverage mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on. It is with electric mixer and the motor could be regulated. It adopts the high quality of SUS304 material and meet with the food grade. It is easy to operate and washing. Also it could be set with automatic CIP spraying head for more easy washing. In addition, the heating method,we usually by electrical heating and steam heating two, according to customer requirements.

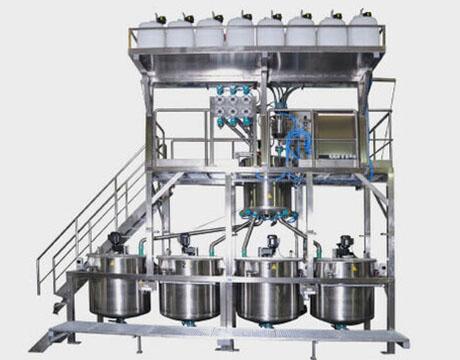

This Liquid Dosing System consists of a flow sensor, load cells, controlling function, a gear pump, a filter, a check valve. It can be widely used in soft PVC and rubber products, such as LVT floor, PVC cable, etc.
When it comes to the accurate metering of fluids, it is vital that a dosing pump is selected that is able to precisely deliver aquantity of the liquid at controlled intervals. Whether this be dosing chemicals for water treatment or ingredients and additives in food, cosmetic or manufacturing production line, Castle Pumps have a metering pump solution for you. We understand that maintaining a smooth, consistent flow at extremely low flow rates isn’t something every pump is designed to do, which is why we have built up our dosing pump range.
| Volume(L) | Dimensions(D×Hmm) | Total Height(mm) | Motor Power(KW) |
| 300 | 800×610 | 1350 | 2.2 |
| 500 | 800×1000 | 2100 | 3 |
| 1000 | 1100×1220 | 2420 | 3 |
| 1500 | 1300×1220 | 2420 | 5.5 |
| 2000 | 1450×1220 | 2420 | 7.5 |
| 3000 | 1600×1500 | 2700 | 11 |
| 5000 | 2300×1800 | 3500 | 22 |
| 10000 | 2300×2900 | 3700 | 37 |
| More | According to customer's requirement |
Main Features
1. Container with high temperature insulation materials, anti-aging polyurethane foam or EPE.
2. The interface uses the international standard ISO quick chuck, liner made of imported stainless steel SUS316L or SUS304 manufacturing, the inner surface of the mirror-polished to Ra≤0.4m, the outer surface of the cast matte, glossy, matt sandblasted or cold colors.
3. Agitator seal imported sanitary mechanical seals or magnetic stirring sealed stirring device, stirring speed optional.
4. The nozzle has a level gauge port (static pressure, capacitive, non-contact, ultrasonic, glass tube), mouth breathing air,thermometer (digital display or dial type), CIP cleaning mouth, depending on the mirror, depending on the light-proof (as endoscopic light integration), SIP sterilization mouth, and out of the liquid inlet and health manhole.
