9-19 series high pressure fans blowers :

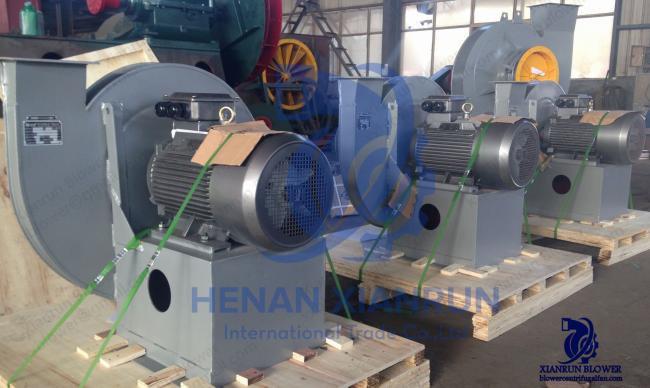

9-19 Model high-pressure centrifugal fan is generally used for smithing furnace and high pressure forced ventilation, and can be widely used in conveying material, as well as transport non-corrosive, spontaneous combustion, gas containing viscous material. Medium temperature is generally not more than 50 ° C, highest do not exceed 80 ° C; The dust content in the medium and hard particles is not more than 150 mg/m3.The fan is A type of drive. Overall structure are mainly impeller, casing, air inlet, support, motor, etc.Fan blades are forward curved leaf shape. Impeller diffuser outer circumferential speed highest do not exceed 140 m/s. impeller formed by the dynamic and static balance correction, so the stable running.Generally applicable to smithing factory, glass factory, ceramics factory, wireless power plant and other high pressure forced ventilation and food factory, feed factory, mineral powder factory, processing industry such as the battlefield of material transfer.

Straight league transmissionFan wind turbines installed directly on the shaft extension straight driving, convenient installation, need less components, low maintenance cost; No indirect transmission of power loss.


Key Features

• Impeller diameter: 90~3500 mm
• Speed of mainshaft: 560~2900 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~83305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 80%-90%

Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.
