0.18mm 2mm APET Plastic Sheet Clamshell Blister Electronic Packaging Thermoforming PET Sheet Manufacturers
Transparent APET Sheet Roll For Thermoforming
Product Description
Thermoforming PET sheet film is a kind of packaging film with good overall performance. With good transparency and gloss, good air tightness and fragrance retention, and moderate moisture resistance. Thermoforming PET sheet has excellent mechanical properties, and its strength and toughness are the best among all thermoplastics.
- Outstanding thermoforming characteristics, particularly in deep draw applications
- Good impact resistance
- Allows for rigid thermoforming cycle times
- Die cuts/punches easily
- Low forming temperature
- Printable
- Chemical resistant
- Self-extinguishing
| General Properties | Value | Test Method | Unit |
| Density | 1.36 | ISO 1183 | g/cm³ |
| Water Absorption | 0.25 | ISO 62 | % |
| Flammability | HB / HB | UL 94 | / |
| Mechanical Properties | |||
| Yield Stress | 85 | ASTM D638 | MPa |
| Elongation @ Break | 15 | ASTM D638 | % |
| Tensile Modulus of Elasticity | 3000 | ASTM D638 | MPa |
| Notched Impact Strength (Charpy) | 2 | DIN EN ISO 179 | kJ/m2 |
| Ball Indentation Hardness | 170 | DIN EN ISO 2039-1 | MPa |
| Shore Hardness | 84 | DIN EN ISO 868 | Scale D |
| Thermal Properties | |||
| Melting Temperature | 255 | ISO 11357-3 | °C |
| Thermal Conductivity | 0.28 | DIN 52612-1 | W / (M*K) |
| Thermal Capacity | 1.1 | DIN 52612 | kJ / (kg*K) |
| Coefficient of Linear Thermal Expansion | 60 | DIN 53752 | 10-6K-1 |
| Service Temperature, Long Term | -20 up to +115 | Average | °C |
| Service Temperature, Short Term (Max.) | 180 | Average | °C |
| Heat Deflection Temperature | 80 | ASTM D648 | °C |
| Electrical Properties | |||
| Dielectric Constant | 3.4 | IEC 60250 | / |
| Dielectric Dissipation Factor (50Hz) | 0.001 | IEC 60250 | / |
| Volume Resistivity | 10 18 | IEC 60093 | Ω*cm |
| Surface Resistivity | 10 16 | IEC 60093 | Ω |
| Comparative Tracking Index | 600 | IEC 60112 | |
| Dielectric Strength | 20 | ASTM D149 | kV/mm |

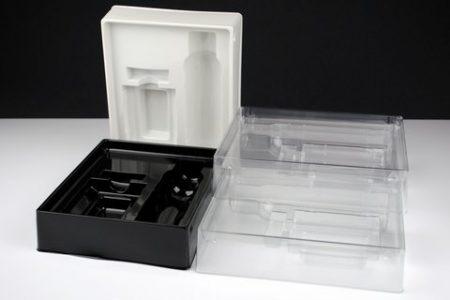

Application For Thermoforming PET Sheet
- Packaging
- Folding box
- Vacuum therm-forming

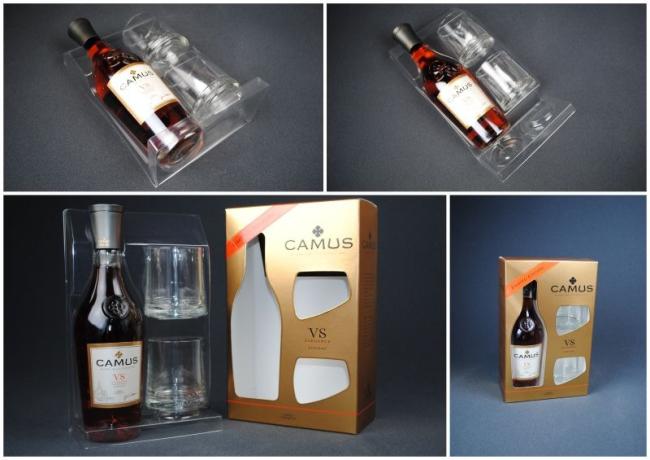

- Blister Pack
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years of experience. If you have interest welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Special samples need 3 days. Mass production generally needs 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limits?
A: Normal only 1000kgs, Special colors about 5000kgs.
Q5. What are your terms of payment?
A: 30% T/T in advance, balance before shipment. We accept L/C at sight.
