2440mm APET Plastic Sheet PET Polyethylene Terephthalate Sheets

Price Negotiable
Price: Negociated
MOQ: 1000 kilograms
Delivery Time: 7 Work Days
Brand: Jiaou
Product Description

APET Plastic Sheet PET Polyethylene Terephthalate Plastic Films Sheets



Product Description



Polyethylene Terephthalate (PET) sheets are available either as an amorphous or semi-crystalline thermoplastic. Whereas the amorphous type is highly transparent and has a lower mechanical strength, as well as substantially inferior sliding characteristics than the semi-crystalline type, semi-crystalline types have higher hardness, rigidity, and strength with outstanding sliding behavior and low sliding wear.





  • Outstanding thermoforming characteristics, particularly in deep draw applications
  • Good impact resistance
  • Less brittle than acrylic
  • Resistant to common cleaners used on point of purchase displays
  • Allows for rigid thermoforming cycle times
  • FDA compliant grades available
  • Impact strength greater than acrylic and approaches polycarbonate
  • 86% light transparency compared to 87% for polycarbonate and 92% for acrylic
  • Die cuts/punches easily
  • Low forming temperature
  • Printable
  • Chemical resistant
  • Self-extinguishing



 Technical Data Sheet

General Properties Value Test Method Unit
Density 1.36 ISO 1183 g/cm³
Water Absorption 0.25 ISO 62 %
Flammability HB / HB UL 94 /
Mechanical Properties
Yield Stress 85 ASTM D638 MPa
Elongation @ Break 15 ASTM D638 %
Tensile Modulus of Elasticity 3000 ASTM D638 MPa
Notched Impact Strength (Charpy) 2 DIN EN ISO 179 kJ/m2
Ball Indentation Hardness 170 DIN EN ISO 2039-1 MPa
Shore Hardness 84 DIN EN ISO 868 Scale D
Thermal Properties
Melting Temperature 255 ISO 11357-3 °C
Thermal Conductivity 0.28 DIN 52612-1 W / (M*K)
Thermal Capacity 1.1 DIN 52612 kJ / (kg*K)
Coefficient of Linear Thermal Expansion 60 DIN 53752 10-6K-1
Service Temperature, Long Term -20 up to +115 Average °C
Service Temperature, Short Term (Max.) 180 Average °C
Heat Deflection Temperature 80 ASTM D648 °C
Electrical Properties
Dielectric Constant 3.4 IEC 60250 /
Dielectric Dissipation Factor (50Hz) 0.001 IEC 60250 /
Volume Resistivity 10 18 IEC 60093 Ω*cm
Surface Resistivity 10 16 IEC 60093
Comparative Tracking Index 600 IEC 60112
Dielectric Strength 20 ASTM D149 kV/mm

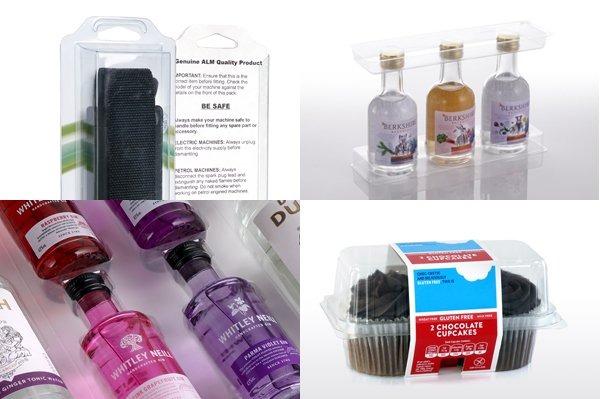

Application For PET Sheet

PET sheets are widely used for packaging consumer goods, electrical Accessories, and medical products. In packaging applications, PET sheet act as Excellent barriers to acids and strong oxidizers.



- Thermoforming containers and trays

- Folding box

- Blister trays and clamshells
- Insert tray packaging









Package & Delivery

















 FAQ

Q1. Are you a factory or trade company?

A:  We are a professional manufacturer with 15 years experience, if you have interests welcome to visit our factory.



Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free, but charge by freight collection.



Q3. How about the lead time?

A: Normal sample supply it at once. Unique samples need 3 days. mass production generally takes 5-10 working days after receiving your initial payment.



Q4. Do you have any MOQ limit?

A: Normal Only 100kgs, Special colors about 5000kgs.



Q5. What are your terms of payment?

A:  30% T/T in advance, balance before shipping. We accept L/C at Sight.
