Folding Boxes Thermoforming PET Sheet Transparent Sheet For Gifts 300-1280mm

Price Negotiable
Price: Negociated
MOQ: 1000 kilograms
Delivery Time: To Be Negotiated
Brand: Jiaou
Product Description



 Thermoforming PET Sheet Transparent Clear



Product Description



As fully recyclable, thermoforming PET sheet is a good option for companies who encourage their customers to recycle used packaging items.



• Outstanding thermoforming characteristics, particularly in deep draw applications

• Good impact resistance

• Allows for rigid thermoforming cycle times

• Die cuts/punches easily

• Low forming temperature

• Printable

• Chemical resistant

• Self-extinguishing







Technical Data Sheet

General Properties Value Test Method Unit
Density 1.36 ISO 1183 g/cm³
Water Absorption 0.25 ISO 62 %
Flammability HB / HB UL 94 /
Mechanical Properties
Yield Stress 85 ASTM D638 MPa
Elongation @ Break 15 ASTM D638 %
Tensile Modulus of Elasticity 3000 ASTM D638 MPa
Notched Impact Strength (Charpy) 2 DIN EN ISO 179 kJ/m2
Ball Indentation Hardness 170 DIN EN ISO 2039-1 MPa
Shore Hardness 84 DIN EN ISO 868 Scale D
Thermal Properties
Melting Temperature 255 ISO 11357-3 °C
Thermal Conductivity 0.28 DIN 52612-1 W / (M*K)
Thermal Capacity 1.1 DIN 52612 kJ / (kg*K)
Coefficient of Linear Thermal Expansion 60 DIN 53752 10-6K-1
Service Temperature, Long Term -20 up to +115 Average °C
Service Temperature, Short Term (Max.) 180 Average °C
Heat Deflection Temperature 80 ASTM D648 °C
Electrical Properties
Dielectric Constant 3.4 IEC 60250 /
Dielectric Dissipation Factor (50Hz) 0.001 IEC 60250 /
Volume Resistivity 10 18 IEC 60093 Ω*cm
Surface Resistivity 10 16 IEC 60093
Comparative Tracking Index 600 IEC 60112
Dielectric Strength 20 ASTM D149 kV/mm

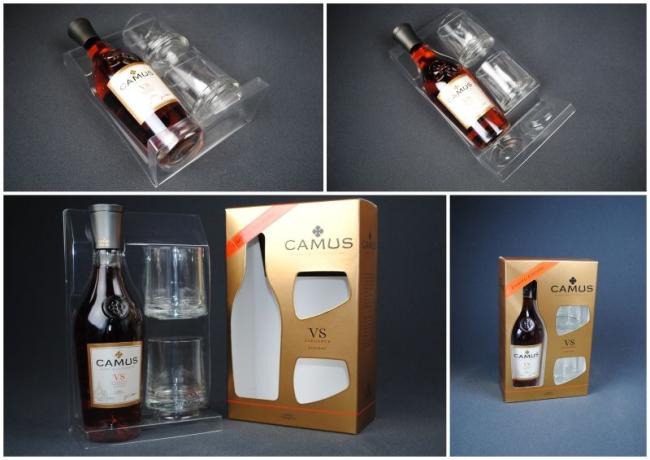

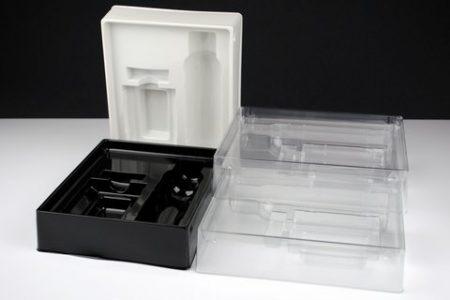

Application For PET Sheet



Thermoforming PET sheet is widely used for packaging consumer goods, electrical accessories, and medical products. In packaging applications, Thermoforming PET sheet acts as excellent barriers to acids and strong oxidizers.



  • Packaging
  • Folding box
  • Vacuum therm-forming
  • Blister Pack















 Package & Delivery



















FAQ

 Q1. Are you a factory or trade company?

A:  We are a professional manufacturer with 15 years of experience. If you have interest welcome to visit our factory.



Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free, but charge by freight collection.



Q3. How about the lead time?

A: Normal sample supply it at once. Special samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.



Q4. Do you have any MOQ limits?

A: Normal Only 1000 kgs, Special colors about 5000 kgs.



Q5. What are your terms of payment?

A:  30% T/T in advance, balance before shipment. We accept L/C at sight.
