Safety Features Counterweight Forklift Truck Fork Length 920/1070/1220/1500 Mm
Safety Features Counterweight Forklift Truck Fork Length 920/1070/1220/1500 Mm
1. Products Description
The MCLLROY 1 to 3 tonne IC engine forklift trucks have demonstrated their effectiveness and legendary reliability over many years in the most demanding applications. Multiple generations of forklift truck owners have developed a deep appreciation and reliance on these durable and highly capable machines. MCLLROY further enhances and builds upon these exceptional qualities.
2. Specification
| Specification | FD20 |
| Rate Loading Weight | 2000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Manual/Hydraulic auto 1R,0,1F |
| Fork Length | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 7.00-12-12PR |
| Rear Tire | 6.00-9-10PR |
| Overhead Guard Height | 2140 mm |
| Overall Length(with/without fork) | 3523/2453 mm |
| Overall Width | 1160 mm |
| Overall Height (Mast extended/lowered) |
3000mm: 4220/2060 mm |
| Total Weight | 2660 KG |
| Front Overhang | 448 mm |
| Free Fork Height | 100 mm |
| Angle of Mast inclination (forward /backward) |
6°/12° |
| Load Center | 500 mm |
| Ground Clearance | 120 mm |
| Wheel Base | 1600 mm |
| Wheel Track | 970/970 mm |
3. Details and Advantages
The robust, high-visibility mast enables the handling of heavy loads in challenging environments with utmost confidence.
Utilization of small diameter lift cylinders and strategic positioning of hydraulic lines guarantee excellent forward visibility across the broad mast.
Additionally, the Plus Cab panel cabin provides exceptional visibility through laminated glass and comprehensive protection from weather elements.
The clear-view construction permits exceptional visibility through the mast, fork carriage, and overhead guard, promoting maximum operator safety and operational efficiency.
Furthermore, the operator experiences a low noise level at just 78 dBA and minimal vibration from the powertrain, enhancing comfort and reducing fatigue.
4. Optional Configurations
| 1 | Solid tires (the Advanced brand or equivalent) |
|||
| 2 | Automatic transmission(1-4.5Ton) | |||
| 3 | Sideshift | |||
| 4 | Thicken Toyota seat (no shock absorber) | |||
| 5 | Toyota seat (with shock absorber) | |||
| 6 | Fork positioner | |||
| 7 | Closed cab | |||
| 8 | Double front tires(1-5Ton) | |||
| 9 | Normal double mast:3300-4000mm. | |||
| 10 | Full free double mast:3000-4000mm. | |||
| 11 | Full free triplex mast:4500-7500mm. | |||
| 12 | Fork length:920/1370/1550 mm | |||
| 13 | Extension fork | |||
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.

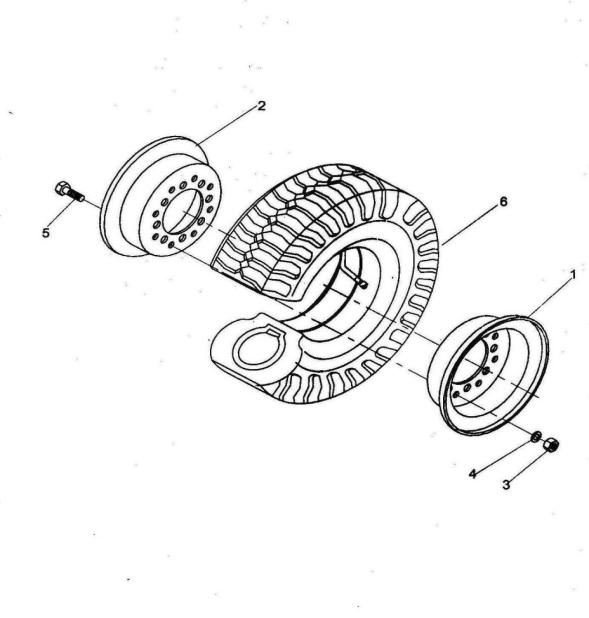

6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty |
| A | FD20(25)-Q0000 | Front weel | 2 |
| 1 | FD20(25)-Q0001 | Rim,outside | 2 |
| 2 | FD20(25)-Q0002 | Rim,outside | 2 |
| 3 | FD20(25)-Q0001 | Nut | 12 |
| 4 | GB/T93-1987 | Washer,lock | 12 |
| 5 | FD20(25)-Q0004 | Bolt | 12 |
| 6 | FD20(25)-Q0005 | Tyre | 2 |
