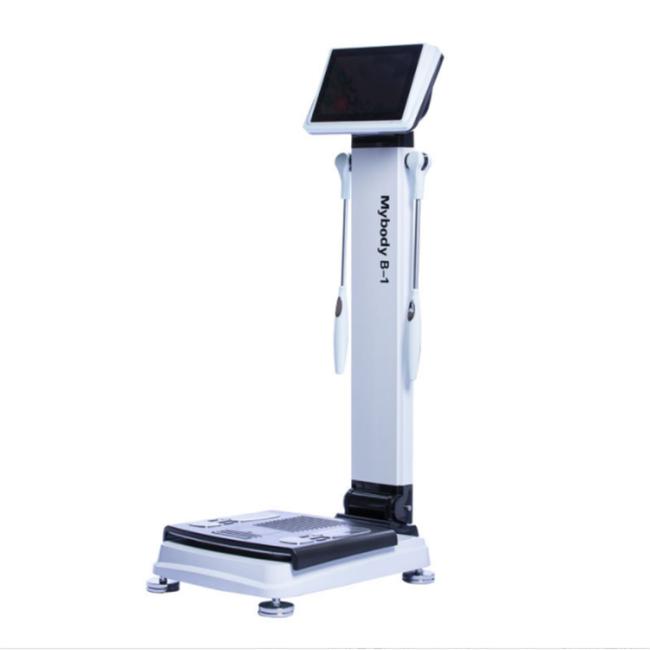

Vertical Body Fat Analyzer 3d Body Scanner Measurement

The computing model of foreign products is based on foreign samples (mainly Westerners) test data. Due to different races, especially the national differences composed of the East and the West, it is impossible to ensure the accuracy of the use of imported body component tools. Since the development of my system series of instruments, the Chinese have been used as test samples, including all gender samples of all ages. These samples are highly representative, so our number is very high. Learning model is the most characteristic model of Chinese, which can be called "Chinese human body composition model". The body composition tool of the MyBody series naturally has the highest accuracy to the Chinese people.



Measuring method	Multi-frequency bioelectrical impedance method DSM-BIA Method
Test frequency	5KHz, 50KHz, 250KHz
Measurement parameters	There are 15 electrical impedance values in 3 frequencies and 5 segments
Electrode	8 point contact electrode
Resistance range	100 ~ 1000Q
Constant current	500 μA
Power supply	12.0V,5.0A
Rated power	< 25W
Display part	1920 X 1200 (10.1") Color Touch screen
Data interface	Wireless network, USB interface, network port
Printer	Any printer model can be connected directly
