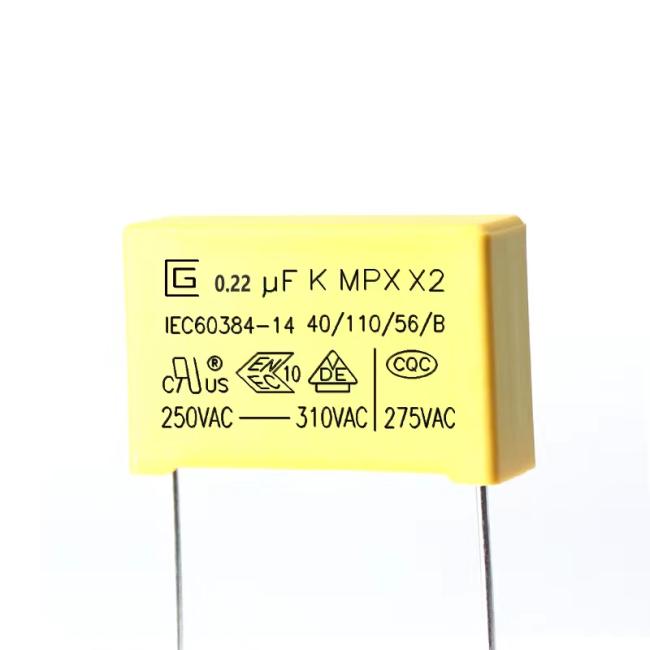

0.22uf 310v X2 Safety Capacitor Anti-Interference Capacitor

Products Introduction

MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating.

They have excellent features of self-healing and good flame retardant according to UL 94-V0


Type application
The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.

^{1. Operating temperature: -40°C ~ +110°C}

^{2. Capacitance range: 0.01uF~3.3uF}

^{3. Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )}

^{4. Rated voltage: 310VAC,330VAC}

^{5. Dissipation factor:0.1%MAX AT 1KHz, 25°C}

^{6. Voltage proof: 2100VDC 1Sec (20°C)}

^{7. Insulation resistance:}

^{>30,000MΩ (C≤0.33uF)}

^{>10,000MΩ/ uF (C>0.33uF) AT 25°C}

^{8. Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,}

^{1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,}

^{ΔIR≥50% of the specified value.}

Features

1 Non-inductive structure

2 High moisture resistance

3 Good self-healing properties

4 Flame retardant (UL 94V-0 compliant)

5 Very low loss

6 Excellent frequency and temperature characteristics

With a capacitance of 0.22uF and a maximum voltage rating of 310VAC,

this capacitor offers excellent performance and stability to ensure smooth and uninterrupted operation of your electronic devices.

In addition, its compact size and easy-to-install design make it a convenient and practical choice for DIY enthusiasts and professional technicians.
