Electroless Nickel Plated Copper Strip For High Precision Belt Battery
Special For High Precision Nickel-Plated Copper Belt Battery
Product Description
Nickel-plated copper strip has excellent surface color, conductivity, processability, ductility, weather resistance, corrosion resistance and weldability. It will not produce gas embrittlement effect at high temperature. It can be soldered and ultrasonically welded. The main component of the resistance alloy has good corrosion resistance, good welding performance and processing performance, and is widely used in electric heating elements in low-voltage electrical appliances such as thermal overload relays and low-voltage circuit breakers.
- Ni Plating: Electroless Nickel, Hybrid Electroless Nickel, Normal Electroplating
(Three types of craft products are available according to customer requirements)
- Width: Any width of 20~100mm can be produced. (customized production according to customer requirements)
- Thickness: 0.2T~0.5T (customer optional)
- Nickel plating layer (Plating thickness): Nickel plating layer on 4 sides
- Nickel plating thickness: 1um±0.5um
- Chamfering (Edge treatment): 20W~100W(mm) can be chamfered
- Surface treatment: according to customer requirements. (DBT: can produce 85 degrees/1000PPM/24H, 48H, 168H, 28 days)
| Material grade | T2 | ||
| Material purity | Cu+Ag ≥99.9% | ||
| Physical properties | Conductivity ≥100% | Tensile strength 200-260MPa | Elongation rate≥42% |
| Plating thickness (single side)um | 1.5 , 2 , 3 | ||
| Product specification(mm) | Thickness 0.08-0.4 Tolerance ±0.01 | Width 1.5- 200 Tolerance ± 0.1 | |
| Availability | M state HV≤60 | ||
| Supply shape | Roll, sheet, special-shaped punching | ||
| 180°bending | ≥ 7次 | ||
| Electroplating form | Two or four sides | ||
| Performance | Has good surface color, electrical conductivity, plasticity, ductility, corrosion resistance and weldability. Soldering, ultrasonic welding and spot welding are available. | ||
| Purpose | It is used in electronic connectors, precision electronic plug-ins, power battery connecting pieces, tab negative poles, switch contactors, and the connection between lithium battery positive poles and PCB boards. | ||

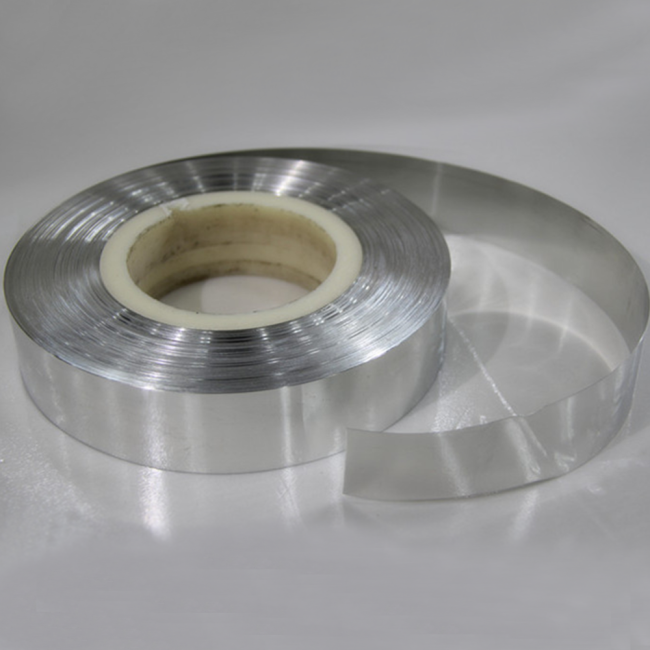

Product display
Package
-Product packaging: Spool, plastic seal, and aluminum-plastic film seal packaging
- Outer packaging size: paper (L410mm*W410mm*H95mm)
- Product packaging inner diameter: 100mm and 200mm, or other inner diameters are optional.
FAQ
1.Are you trading or manufacturer ?
We are company,and we have our own factory
2.How long is your delivery time?
| Quantity(kilograms) | 1 - 500 | >500 |
| Est. Time(days) | 10 | To be negotiated |
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question, pls feel free to contact us
