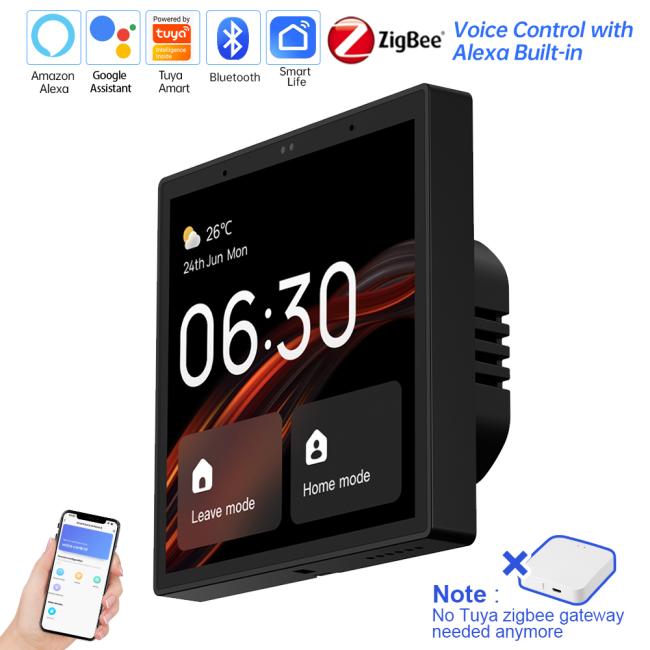

SIXWGH 4-Inch Touchscreen Smart Home Control Panel Alexa Tuya Gateway Built-In Zigbee 3.0 Hub Voice Control Wall-Mounted AIoT
Smart Voice Control Panel SIXWGH Pro
SIXWGH 4-Inch Touchscreen Smart Home Control Panel Alexa Tuya Gateway Built-In Zigbee 3.0 Hub Voice Control Wall-Mounted AIoT

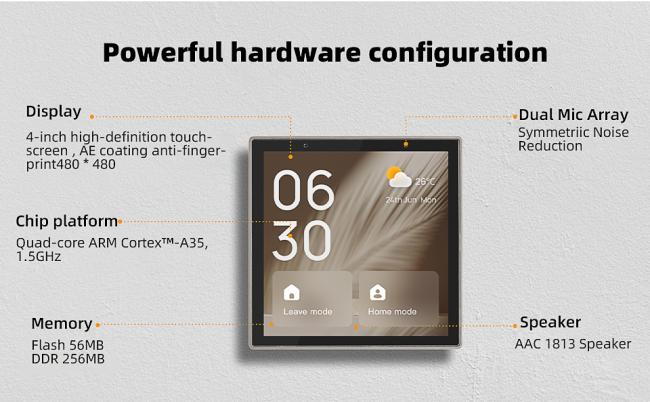

Core Specifications
| Component | Technical Parameters | Certification |
|---|---|---|
| Processor | Quad-core ARM Cortex-A35 @ 1.5GHz | ISO 9001, RoHS 3 |
| Memory | 256MB DDR4 + 56MB Flash | JEDEC Standard |
| Display | 4" IPS Touchscreen (480×480, 250 nits) | ΔE<2 Color Accuracy |
| Wireless Protocols | Zigbee 3.0 + Wi-Fi 802.11 b/g/n 2.4GHz | Zigbee Alliance Certified |
| Voice System | Dual-mic array (SNR ≥65dB), AAC Speaker | Amazon AVS 4.0 |
| Power Rating | 100-240V AC, 10A Resistive Load | UL 61010-1, EN 62368-1 |
-

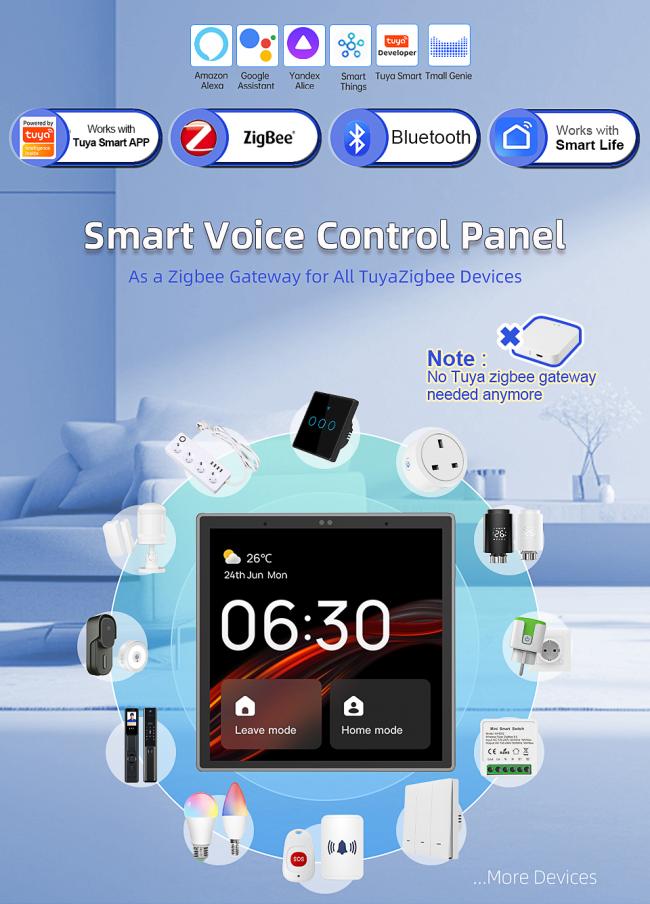

All-in-One Gateway Function
-
Replaces 4 devices: Zigbee hub, AC controller, switch panel, intercom system
-
Supports 128 sub-devices (sensors/locks/lights)
-
Image Reference: 960_01.jpg (Gateway integration)
-
-

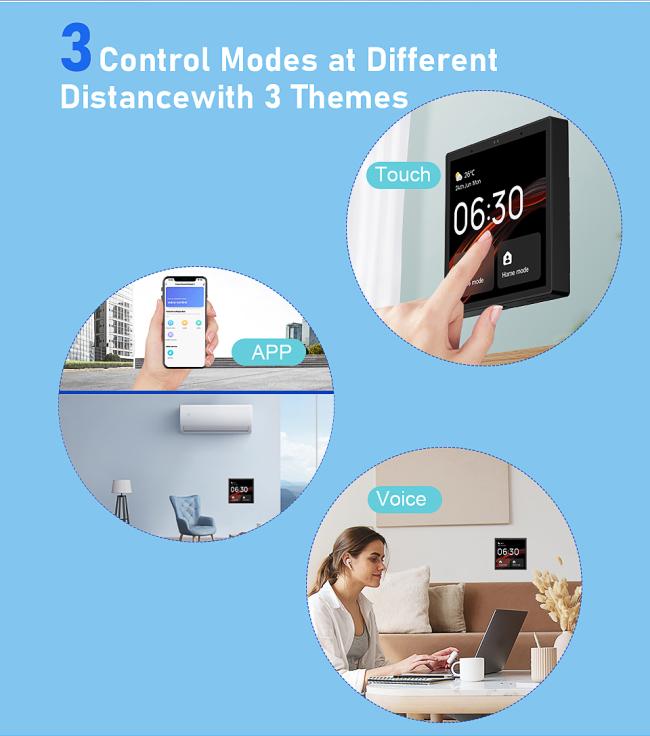

Professional-Grade Interaction
-
3-Control Mode System:
-
Touch: 0.1s response (4" drag-resistant glass)
-

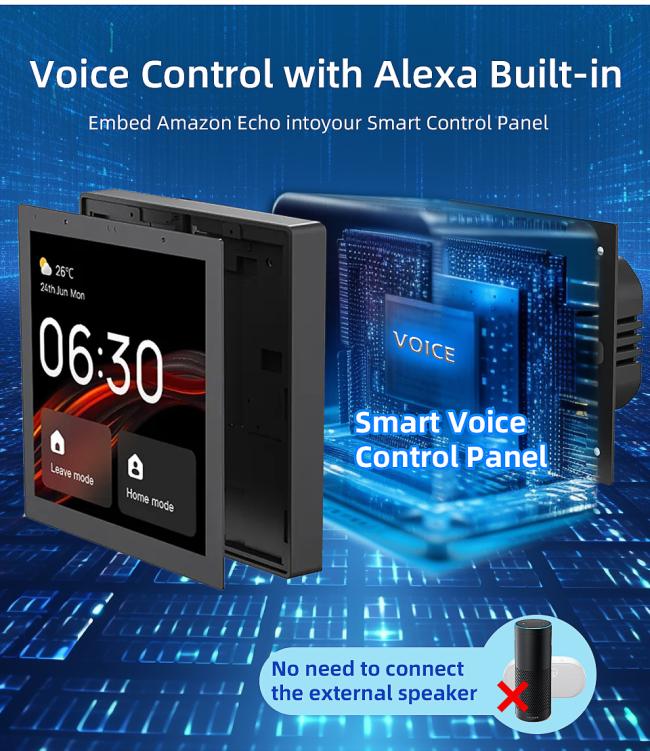

Voice: Alexa/Google Assistant (5m recognition range)
-
APP: Tuya Smart Life (iOS/Android)
-
-
Image Reference: 960_02.jpg (Control modes)
-
-

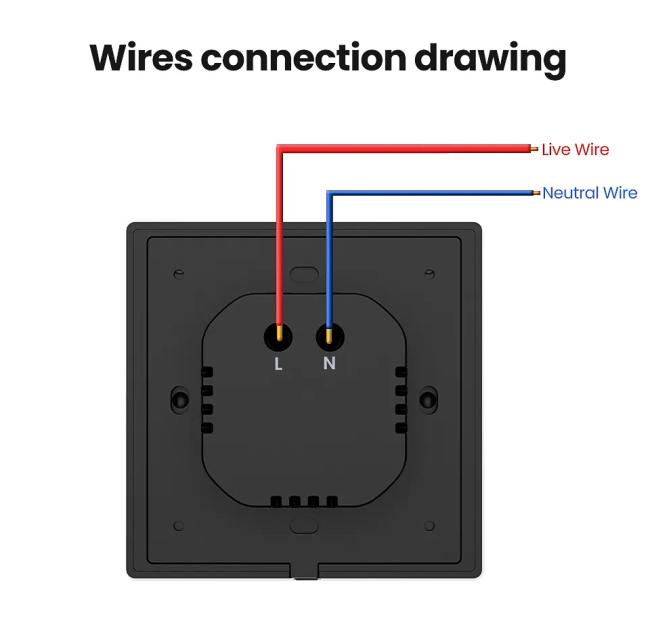

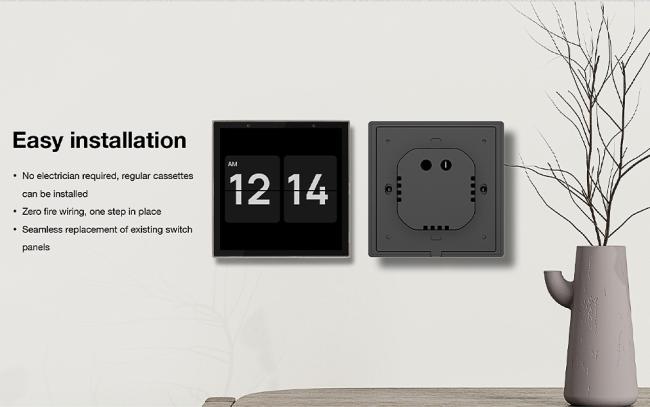

Industrial-Grade Installation
Installation Type Wiring Compliance Time Standard (L+N) Live + Neutral IEC 60664-1 10 min Retrofit (Single-Live) Live only EN 50678 15 min -
86mm EU standard back box (EN 60670-1)
-
Ecosystem Compatibility
-
Protocol Support:
-
Zigbee 3.0 (IEEE 802.15.4)
-
Tuya Cloud API v4.0
-
ONVIF Profile S (Doorbell cameras)
-
-
Verified Integration:
-
100+ Tuya-certified devices
-
Alexa routines/Google Home scenes
-
BACnet HVAC systems (Modbus RTU converter)
-
Performance Metrics
| Function | Metric | Test Standard |
|---|---|---|
| Local Control Delay | ≤150ms | RFC 2544 |
| Video Doorbell Feed | ≤0.5s latency (1080p) | ONVIF 2.7 |
| Voice Recognition | 95% @3m (45dB noise) | ANSI/ASA S3.2 |
| OTA Update | ≤5MB package size | RFC 7233 |
| Operating Temp | -10°C to +50°C | IEC 60068-2-1/2 |
Commercial Applications
-
Hotel Automation:
-
Room occupancy modes (check-in/out)
-
Energy savings ≥35% (HVAC scheduling)
-
-
Smart Security:
-
Real-time doorbell video popup
-
Temporary access codes
-
Image Reference: 960_05.jpg (Intercom function)
-
-
Industrial Use:
-
IP44 front panel rating (dust/moisture)
-
Vibration resistance (5-500Hz, 3G)
-
Compliance & Warranty
| Certification | Standard | Validity |
|---|---|---|
| EMC | EN 55032/55035 | 2028 |
| Safety | EN 62368-1:2023 | Unlimited |
| Radio | FCC Part 15B, RED 2014/53/EU | 2026 |
| Warranty | 24 months global | Replacement |
Ordering Information
| Quantity | Unit Price | Delivery | Package |
|---|---|---|---|
| 50-100 pcs | $86.50 | 7 days | 6pcs/box (0.8kg) |
| 100-500 pcs | $78.20 | 15 days | Pallet (200pcs) |
| 500+ pcs | Custom quote | 30 days | Sea freight |

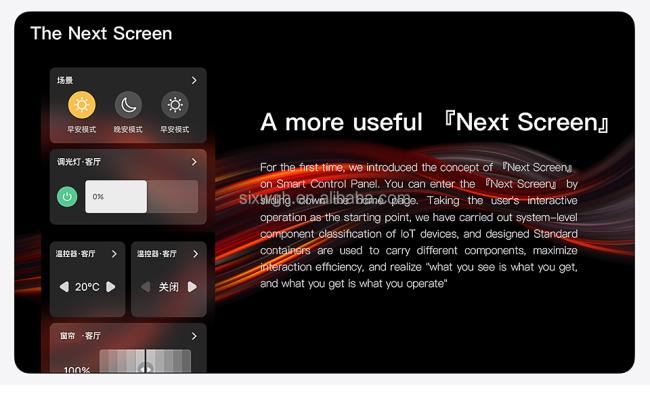

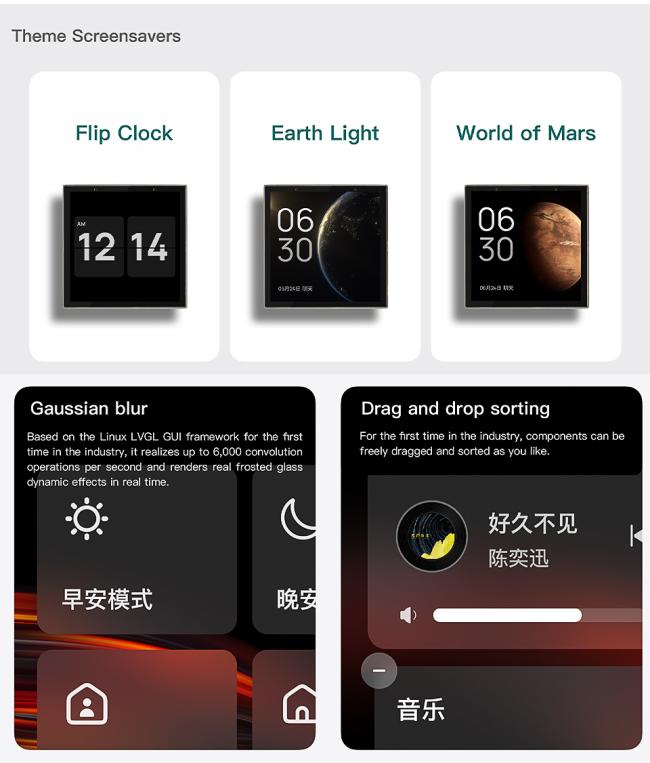

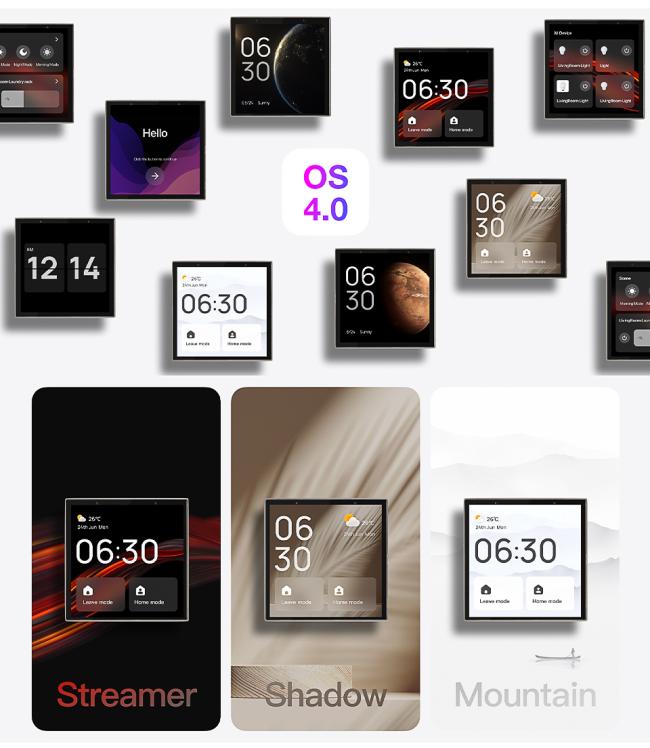

OEM Options:
-
Custom UI themes (Linux LVGL framework)
-
Branded mobile app
-
Multi-language support (EN/ES/FR/AR)
Image Reference: 960_08.jpg (Theme customization)
Live Demo Available - Contact for test device shipment
Technical Documents: CE/FCC reports, SDK, API documentation on request
Compatible Platforms: Amazon Alexa, Google Home, SmartThings, Home Assistant
All specifications based on hardware version SIXWGH v3.2 (2025 Q2)
Smart Control Panel FAQ
Q1: Need extra gateway?
A: No. Built-in Zigbee 3.0 hub (128 devices).
Q2: Wiring requirements?
A: Live+Neutral or Single-Live wire. (Pic 960_15)
Q3: Alexa offline?
A: Basic voice: Yes | Cloud features: No
Q4: MOQ?
A: 50pcs (standard), 100pcs (OEM)
Q5: Certifications?
A: CE/FCC/RoHS. Reports available.
Q6: Max devices?
A: 128 Zigbee + Unlimited cloud
Q7: Video doorbell?
A: ONVIF cameras (1080p). (Pic 960_05)
Q8: Warranty?
A: 24 months global.
