50KW PWHT Machine Induction Heat Treatment Equipment 1-800MM
50KW PWHT Induction Heat Treatment Machine
Features:
1. 2 Channels Temperature system testing.
2. Quick Heating: Reach the target temperature quickly!
3. More options for working mode: Time, temperature, Power,constant Power and so on. Can know the heating curve.
4. Full digital embedded control software, high heating accuracy, programmable control, can achieve remote monitoring and remote control; Full Digital control, can shows heating time, heating power, heating current, Heating impedance, frequency and so on in the machine.
5. High temperature: the heating temperature can reach over 700C.
6. The machine has transformer, more safety special for Heating
7. Air Cooled type, no need get water, easier to work different work site. More Stable compare with water cooled type.
8. IGBT type, Most Save electricity.
Specfication:
| Model | DSP-50KW |
| Output Power, kWt | 50KW |
| Working Voltage and Frequency | 380V*3phase 50-60HZ |
| Range of the maximum outer diameter of the heated part, mm | 10 -800MM |
| Heating temperature range, С | 0 - 700C |
| Temperature Control | 2 Channels |
| Cooling Way | Air Cooled |
| Remote control | Yes |
| overheat protection | Yes |
| Inductor weight, kg | 68kg |
| Standard service life, years | 10 and more |
| Power adjustment | 0-100 in 10% steps |
| Heating Cables | 8-15m |
Advantage of Air Cooled PWHT Induction Heating Machine:
1. Air Cooled Type, no need supply cooling water, it is very convenient to work at outside.
2. Small size, it is easy to carry it to any place to work!
3.Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type
4. Digital type machine, frequency, power, current can shows in the touch screen, easy to control the machine and see the working efficiency.
5. More stable performance.
6. 22 Years Experience for such field, rich experience and good quality with stable performance.
7. 24hours*7days service, free parts supply, no any after sales worries!
Application:
Oil/ Gas/ Water /Petrochemical pipeline, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway, bridges, electricity, water, mine construction, vehicle manufacturing, nuclear power, plastic processing, energy saving process, mold, screw barrel industries etc.
Pre-heating of pipe to 300°C before welding a gas pipeline
Air-cooled induction blankets are perfect for this application. The induction coil is sewn into a durable 3-D woven silica material with preheat insulation on the bottom.The entire blanket can be moved from joint-to-joint with minimal change over time. Induction blankets can be used to heat the target material up to 400C. power sources can be powered from a portable generator.

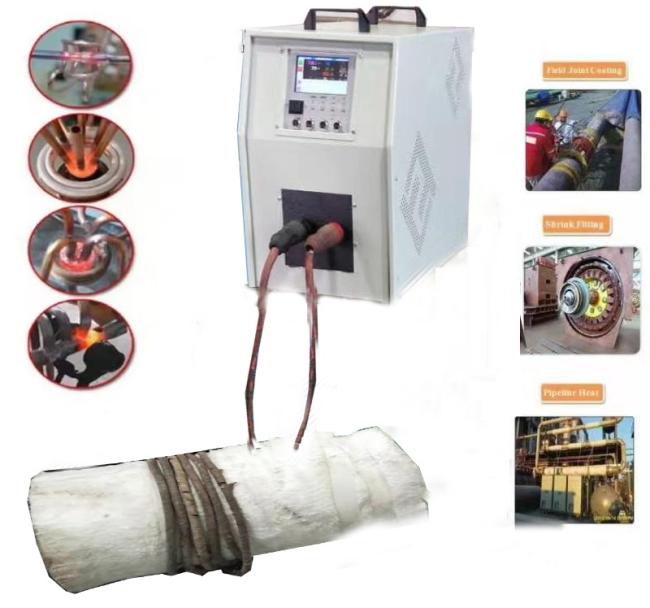

Goods Photos:
