200KGS Iron Copper Induction Melting Furnace 300KW Medium Frequency Induction Furnace

200KGS Iron, Steel, Copper, Brass Induction Melting Furnace 300KW Medium Frequency Induction Power Supply

Main Features:

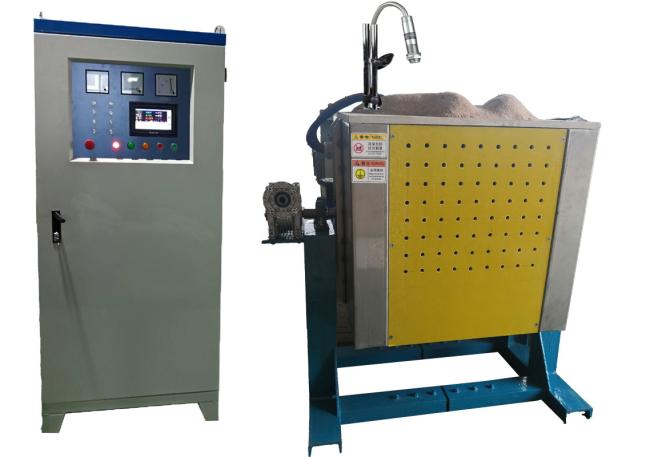

1. The intermediate frequency melting furnace is mainly composed of a power supply, an furnace body with a induction coil and a crucible. Melting metal will be put in the crucible built with refractory materials.

2. The metal is put in the crucible. After the AC power is turned on, an alternating magnetic field is generated in the induction coil. Being cut by the magnetic line of force , the metal material generates an induced electromotive force, and it creates a induced eddy current to heat and melt metal. During the heating and melting process, the temperature of the induction coil keep same as the surrounding temperature, and there is no harmful gases and bright light to pollute the environment. Melting speed can be controlled by adjusting the frequency and current through the power cabinet.

3. Infineon IGBT type, the system structure is safe and reliable, stable performance and simple operation.

4.Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.

5. The Melting Speed is fast and the heating efficiency is high. And it is easy to ensure the heating quality and the running water operation.

6. Our power supply has the insolation transformer, melting furnace’s output voltage is low, so very safe to operate our melting furnace.

7. Infineon IGBT type, Can save 20% electricity compare SCR parallel type and Lamp Vacuum Tube type.

8. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine.

9.  Easy to Using, no need adjust the main board, no need to adjust capacitor's connection.

10. After we debug the machine in our company, then you can use it directly. Very convenient.

Data Sheet:

Summary:

The equipment is a frequency conversion device that converts three-phase power frequency current into a single-phase medium frequency current, through electromagnetic induction metal produced eddy current loss, and achieve the purpose of heating melting. For steel, iron, copper, aluminum, zinc, lead, ferrous and non-ferrous metal and alloy smelting, heat insulation, mainly used in the casting, melting industry.

Application Intermediate frequency electric furnace is widely apply in melting non-ferrous and ferrous metal. Such as carbon steel, alloy steel, special steel, iron, copper and aluminum, etc.

For product: Ingots, steel rebar, steel billet, iron powder, auto parts, brass statues, iron pots or manhole covers, etc.
