Fast and safe melting equipment for Smelting Gold, Sliver,Copper , Steel, And so on

Induction melting machine :
   Induction Melting Furnace Machine: A Comprehensive Overview

An induction melting furnace is a sophisticated thermal processing equipment widely used for melting various metals and alloys through electromagnetic induction. This technology leverages high-frequency alternating currents to generate heat directly within the conductive material, eliminating the need for traditional combustion-based methods.

Key Principles

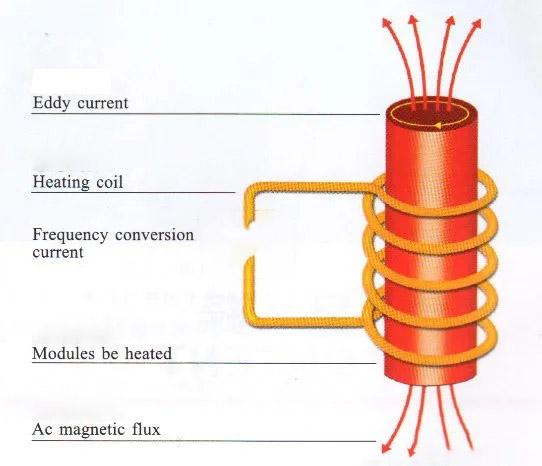

The furnace operates on Faraday's Law of Electromagnetic Induction, where an alternating magnetic field created by a coil induces eddy currents in the metal charge. These currents produce intense heat, causing the material to melt efficiently. Frequencies range from high-frequency (kHz) for precise melting of small batches (e.g., jewelry, aerospace components) to medium-frequency (MHz) for bulk processing (e.g., steel, aluminum).

Advantages
- Energy Efficiency: Direct heat generation reduces energy consumption by up to 50% compared to conventional furnaces.
- Environmental Friendliness: No combustion gases or emissions, minimizing pollution.
- Precision Control: Advanced temperature monitoring systems enable accurate melting curves.
- Non-Contact Heating: Avoids contamination from external tools, ensuring material purity.
Modern induction melting furnaces incorporate AI-driven automation, real-time data analytics, and IoT integration for optimized performance. They also feature modular designs for scalability and energy-saving upgrades like regenerative braking systems.

In summary, induction melting furnaces revolutionize metal processing through their efficiency, precision, and sustainability, making them indispensable in advanced manufacturing and recycling sectors.

Applications
Induction melting furnaces are versatile and used across industries:

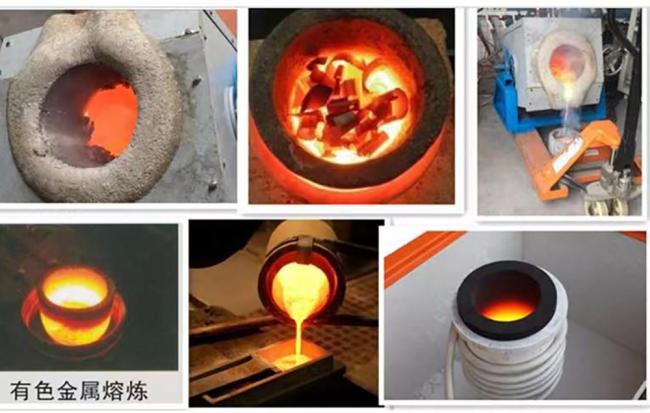

1. Metallurgy: Melting ferrous and non-ferrous metals (steel, copper, aluminum, titanium) for casting, alloying, and recycling.
2. Aerospace & Automotive: Producing high-purity alloys for lightweight components.
3. Jewelry & Dental: Ensuring precise temperature control for small, intricate parts.
4. Recycling: Efficiently melting scrap metal with minimal energy loss.

Technical Parameters:

​

Type	HF-25KW
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430V AC
Output power	25KW
Input current	36A
Fluctuating frequency	30-80khz
Timing	1-100.9S
The flow rate of cooling water	0.15 Mpa 18L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:38Kg Transformer: 25
Size	Main Parts:600*350*600MM Transformer: 550*300*500MM

​
