Hf-15kw High Frequency Induction Heating Machine/ Brazing Machine for Brazing, Heat, Annealing, Quenching
Price:
500
MOQ:
1
Delivery Time:
Negotiable
Product Description
HF-15KW High Frequency Induction Heating Machine/ Brazing Machine for Brazing, Heat, Annealing, QuenchingÂ
![]()
![]()
Main characteristics:
1 Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2100% Duty cycle, continuous working is allowed at maximum power output.

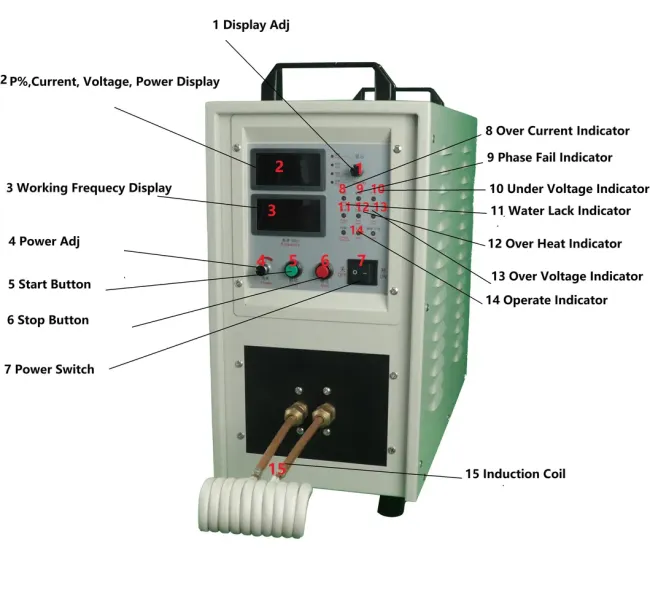

3 Display of heating power and heating current and oscillating frequency;
4Â Â Simple to install, Installation can be done by unprofessional person very easily;
5 Â Light weight
6 Double digital Screen display, better to know the working performance of the machine!
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Â
Main characteristics:
1 Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4Â Â Simple to install, Installation can be done by unprofessional person very easily;
5 Â Light weight
6 Double digital Screen display, better to know the working performance of the machine!
| Type | HF-15KW(A) | ||
| Work power | 220v simple phase/ 50-60hz OR 380V*3Phase |
||
| The range of operating voltage | 200-240V 340V-430V |
||
| Output power | 15KW | ||
| Input Current | 220v single phase | 36A | |
| 380v*3phase | 13A | ||
| Fluctuating frequency   | 30-100KHZ    | ||
| Fluctuating Current | 200-780A | ||
| Timing | 24hours continous | ||
| The flow rate of cooling water  | 0.08-0.16 Mpa 9L/Min | ||
| Water temperature protection point   | 40ºC | ||
| Duty cycle | 100%(40degree room temperature) | ||
| Weight | 38Kg | ||
| Size | 600*230*480MM | ||
Applications: Drill tip heat shaping  Heat treatment  Quenching  Forging  Melting Soldering and brazing Welding |
 | ||
