China Factory Sales Air Cooling Induction Heating Machine for The Metal Pipe Welding Preheat:
Price:
10000
MOQ:
1
Delivery Time:
8DAYS
Brand:
OURUIDA
Product Description
SDP-120KW Digtial type air cooling induction heating machine for the metal pipe welding preheat:
![]()
1.Product Description :
Power:40kw, 80kw, 120kw,160KW 200KW 300KW 500KW
Frequency:2.4-35kHZ
Heating temperature: can be high as 788ºC
Voltage: 3phase, 380-460V, 50/60HZ,
Suitable pipe size: 200-2500mm diameter, 25-120mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
1.Product Description :
Power:40kw, 80kw, 120kw,160KW 200KW 300KW 500KW
Frequency:2.4-35kHZ
Heating temperature: can be high as 788ºC
Voltage: 3phase, 380-460V, 50/60HZ,
Suitable pipe size: 200-2500mm diameter, 25-120mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: pipe welding preheat, PWHT/ post weld heat treatment, joint anti-corrosion coating, etc
Features: movable, accurate temperature control, digital control, self-fault diagnosis, modular design, etc
2.Advantage:
1 More than 26 years experience, stable and goods performance
2 CE certificated
3 Digital Type
4 8 Section heating
Â
3.Application details of DSP-40KW,80KW ,120KWair cooling degitail induction heating machine :

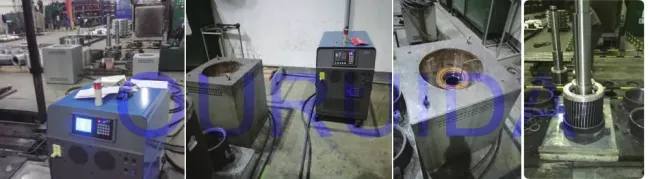

Air cooling induction heating system applied in PWHT/ post brazing /welding heat treatment for steel pipe
![]()
  Air cooling induction heating system applied in hot disassembly and install for motor rotor
![]()

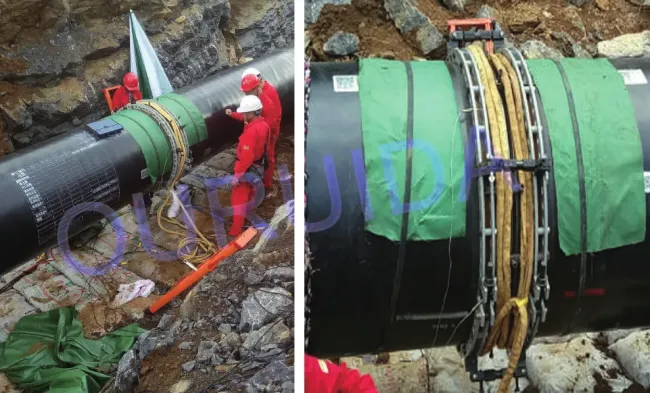

Air cooling induction heating system applied in Anti-corrsive coating of pipe joints /pipe preheat :
![]()
Air cooling induction heating system applied in others :
![]()
7. Package:
![]()
Features: movable, accurate temperature control, digital control, self-fault diagnosis, modular design, etc
2.Advantage:
1 More than 26 years experience, stable and goods performance
2 CE certificated
3 Digital Type
4 8 Section heating
Â
| Name | Full Digital Air Cooled Induction Heating Machine | ||||||
| Work Mode | Manual Mode and Temperature Mode | ||||||
| Alarm System | Over Current, Over Voltage, Fail Phase, Driver Board Over Current , Loading abnormal, out off control protection. | ||||||
| Special Function | Using DSP and  ARM full digital control circuit, the equipment has rich communication interface, support optical fiber, Ethernet, RS485/233, Profibus, CAN and other industrial buses, CAN achieve remote control | ||||||
| Model | DIH-60KW | DSP-120KW | DIH-200KW | DIH-300KW | |||
| Output Power | 60KW | 120KW | 200KW | 300KW | |||
| Frequency | 0.5-10khz | 0.5-10KHZ | 0.5-10KHZ | 0.5-10KHZ | |||
| Work Voltage | 380V/415v/440v/480v*3phase 50-60hz | ||||||
| Power Factor | 0.93 | ||||||
| Min Circuit Breaker | 3P-125 | 3P-160 | 3P-200 | 3P-600 | |||
| Cooling Way | Â Â Â Â Â Â Â Â Air Cooled Type | ||||||
3.Application details of DSP-40KW,80KW ,120KWair cooling degitail induction heating machine :
Air cooling induction heating system applied in PWHT/ post brazing /welding heat treatment for steel pipe
  Air cooling induction heating system applied in hot disassembly and install for motor rotor
Air cooling induction heating system applied in Anti-corrsive coating of pipe joints /pipe preheat :
Air cooling induction heating system applied in others :
7. Package:
