Product Description Of DP83TG720SWRHARQ1
DP83TG720SWRHARQ1 is an IEEE 802.3bp and Open Alliance compliant automotive Ethernet physical layer transceiver.
DP83TG720SWRHARQ1 provides all physical layer functions needed to transmit and receive data over unshielded/shielded single twisted-pair cables.
DP83TG720SWRHARQ1 provides xMII flexibility with support for RGMII and SGMII MAC interfaces.
Specification Of DP83TG720SWRHARQ1
| Part Number | DP83TG720SWRHARQ1 |
|
Type
|
Transceiver
|
|
Protocol
|
IEEE 802.3
|
|
Number of Drivers/Receivers
|
1/1
|
|
Duplex
|
Full, Half
|
|
Data Rate
|
1Gbps
|
|
Voltage - Supply
|
0.95V ~ 1.1V, 2.97V ~ 3.63V
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
Features Of DP83TG720SWRHARQ1
- Integrated LPF on MDI pins
- MAC Interfaces: RGMII and SGMII
- Supported I/O voltages: 3.3 V, 2.5 V, and 1.8 V
- Single board design for 100BASE-T1 and 1000BASE-T1 with required BOM change
- Power savings features: Standby and sleep, Local and remote wake-up
- Diagnostic tool kit
- High accuracy temperature monitor
- Voltage monitor
- ESD event monitor
- Data throughput calculator: inbuilt MAC packet generator, counter and error checker
- Link quality monitoring
- Cable open and short fault detection
- Loopback modes
- 25 MHz clock output source
Applications Of DP83TG720SWRHARQ1
- Telematics control unit (TCU, TBOX)
- Backbone network
- Gateway and body control
- ADAS: LIDAR, RADAR

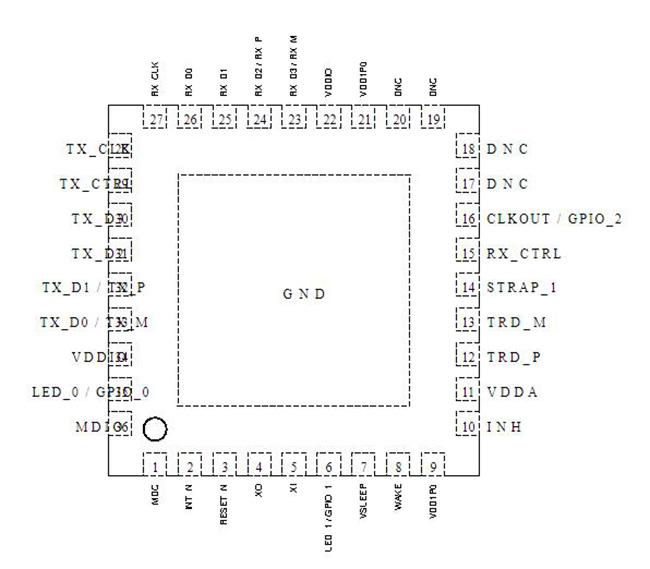

Pin Configuration and Functions Of DP83TG720SWRHARQ1
