SIM8260C-M2 5G Module Multi Band 5G Communication Module 5G NR Frequency Bands
5G Module SIM8260C-M2 Multi Band 5G Communication Module 5G-NR Frequency Bands
Product Description of SIM8260C-M2
The SIM8260C-M2 is the Multi-Band 5G NR/LTE-FDD/LTE- TDD/HSPA+ module which supports R16 5G NSA/SA.
It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.
The SIM8260C-M2 adopts M2 form factor. AT commands of SIM8200X are compatible with SIM8300 series modules. This also minimizes the investments of customers and enables a short time-to-market.
Specification of SIM8260C-M2
|
Part Number: |
SIM8260C-M2 |
Frequency Bands: |
5G-NR |
|---|---|---|---|
|
GNSS: |
GPS/GLONASS/Beidou/Galileo/QZSS |
Sub-6G SA: |
2.1Gbps(DL)/900Mbps(UL) |
|
LTE: |
1Gbps(DL)/150Mbps(UL) |
Dimensions(mm): |
52.0*30.0*2.3 |
Product Benefits of SIM8260C-M2
- Standard M.2 interface
- High throughput data communication
- AT commands of the SIM8260C-M2 are compatible with SIM8200X series modules

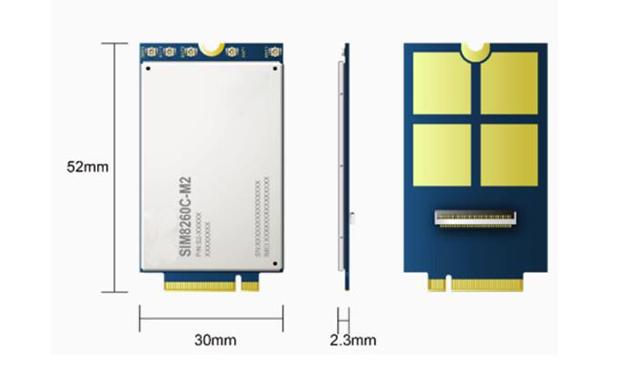

Product Photo of SIM8260C-M2
