TPS7B7701QPWPRQ1 Automotive Single And Dual-Channel Antenna LDO With Current Sense

TPS7B7701QPWPRQ1 Automotive Single And Dual-Channel Antenna LDO With Current Sense

Product Description Of TPS7B7701QPWPRQ1

TPS7B7701QPWPRQ1 devices feature a single and dual, high-voltage low-dropout regulator with current sensing, designed to operate with a wide input-voltage range from 4.5 V to 40 V (45-V load dump protection). These devices provide power to the low-noise amplifiers of the active antenna through a coax cable with 300 mA per channel current. Each channel also provides an adjustable output voltage from 1.5 V to 20 V.

Specification Of TPS7B7701QPWPRQ1

Features Of TPS7B7701QPWPRQ1

• Single and Dual-Channel LDO With Current Sense and Adjustable Current-Limit

• 4.5-V to 40-V Wide Input Voltage Range, 45-V Load Dump

• Power Switch Mode When Tying FB to GND

• 1.5-V to 20-V Adjustable Output Voltage

• Up to 300-mA Output Current per Channel

• Adjustable Current-Limit With External Resistor

• High Accuracy Current-Sense to Detect Antenna Open Condition at Low Current Without Further Calibration

• High Power-Supply Rejection Ratio: Typical 73 dB at 100 Hz

• Integrated Reverse-Polarity Protection, Down to 40 V and No Need for External Diode

• 500-mV Max Dropout Voltage at 100-mA Load

Applications Of TPS7B7701QPWPRQ1

• Infotainment Active-Antenna Power Supplies

• Surround-View Camera Power Supplies

• High-Side Power Switch For Small-Current Applications

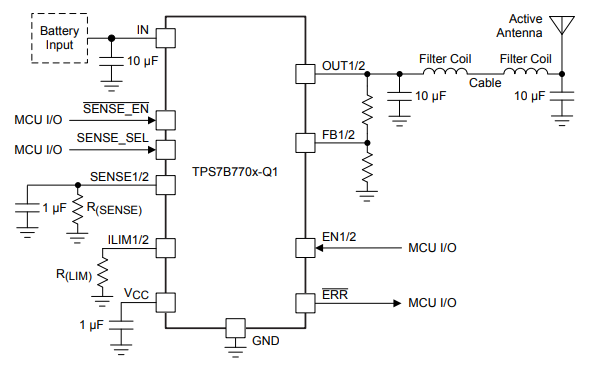

Application Diagram Of TPS7B7701QPWPRQ1
