DRV8243SQRXYRQ1 Automotive H-Bridge Driver with Integrated Current Sense and Diagnostics

Product Description Of DRV8243SQRXYRQ1

DRV8243SQRXYRQ1 devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device can be configured as a single full-bridge driver or as two independent half-bridge drivers.

Specification Of DRV8243SQRXYRQ1

Features Of DRV8243SQRXYRQ1

• 4.5-V to 35-V (40-V abs. max) operating range
• PWM frequency operation up to 25 KHz with automatic dead time assertion
• Configurable slew rate and spread spectrum clocking for low electromagnetic interference (EMI)
• Integrated current sense (eliminates shunt resistor)
• Proportional load current output on IPROPI pin
• Configurable current regulation
• Protection and diagnostic features with configurable fault reaction
• Supports 3.3-V, 5-V logic inputs
• Low sleep current - 1μA typical at 25°C

Applications Of DRV8243SQRXYRQ1

• Automotive brushed DC motors, Solenoids

• Door modules , mirror modules, and seat modules

• Body control module (BCM)

• E-Shifter

• Gas engine systems

• On board charger

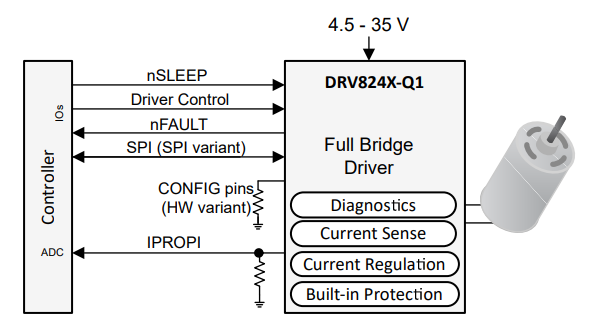

Simplified Schematic Of DRV8243SQRXYRQ1
