Diodes FFSB10120A-F085 Automobile Chips 1200V 21A Rectifiers Single Diodes TO-263-3
Diodes FFSB10120A-F085 Automobile Chips 1200V 21A Rectifiers Single Diodes TO-263-3
Product Description Of FFSB10120A-F085
FFSB10120A-F085(TO-263-3, D²Pak, Surface Mount) Silicon Carbide (SiC) Schottky Diodes use a completely new technology that provides superior switching performance and higher reliability compared to Silicon.
Specification Of FFSB10120A-F085
| Part Number | FFSB10120A-F085 |
|
Voltage - DC Reverse (Vr) (Max)
|
1200 V
|
|
Current - Average Rectified (Io)
|
21A
|
|
Voltage - Forward (Vf) (Max) @ If
|
1.75 V @ 10 A
|
|
Current - Reverse Leakage @ Vr
|
200 µA @ 1200 V
|
|
Capacitance @ Vr, F
|
612pF @ 1V, 100kHz
|
|
Package / Case
|
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
|
|
Operating Temperature - Junction
|
-55°C ~ 175°C
|
Features Of Automobile Chips
- TO247 Mounting Torque, M3 Screw: 60Ncm
- Thermal Resistance, Junction to Case(Max): 0.53 °C/W
- Single Pulse Avalanche Energy: 100mJ
- Peak Repetitive Reverse Voltage: 1200V
- Continuous Rectified Forward Current @ TC < 164°C: 10A
- Continuous Rectified Forward Current @ TC < 135°C: 21A

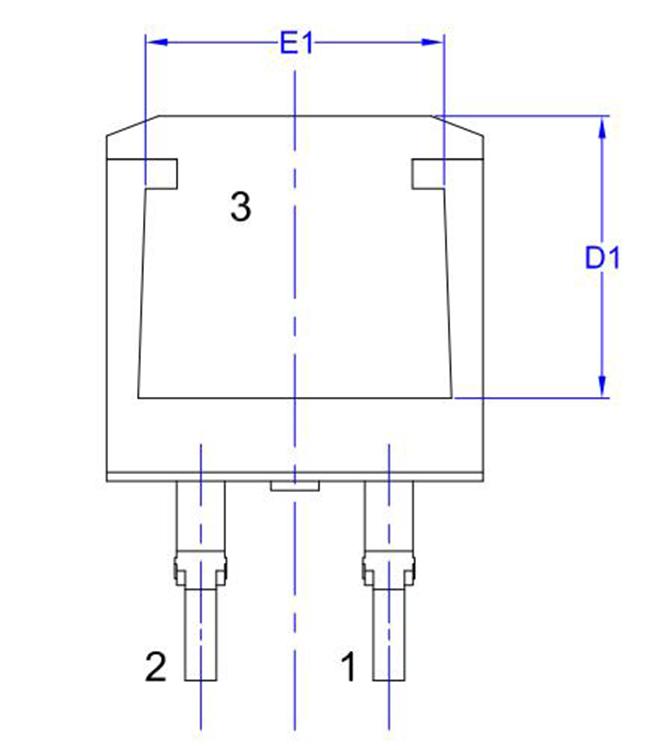

Package Dimensions Of FFSB10120A-F085
Other Electronic Components In Stock
| Part Number | Package |
| AUIPS7091 | SOP8 |
| AUIPS7121 | TO-252-5 |
| AUIPS7125 | TO-252-5 |
| AUIPS7141 | TO-252-2 |
| AUIPS7142 | SOP-16 |
| AUIPS7145 | TO252 |
