BT IC BT 5.2 BLUENRG-345MT 2.4GHz - 2.4835GHz RF System On A Chip - SoC

Product Description Of BLUENRG-345MT

BLUENRG-345MT is an ultra-low power programmable BT® Low Energy wireless SoC solution. It embeds state-of-art 2.4 GHz RF radio IPs combining unparalleled performance with extremely longbattery lifetime.

Specification Of BLUENRG-345MT

Features Of BLUENRG-345MT

• RX sensitivity level: -97 dBm @ 1 Mbps, -104 dBm @ 125 kbps (long range)
• Programmable output power up to +8 dBm (at antenna connector)
• Data rate supported: 2 Mbps, 1 Mbps, 500 kbps and 125 kbps
• 128 physical connections
• Integrated balun
• Support for external PA
• BlueNRG core coprocessor (DMA based) for BT Low Energy timing critical operation
• 2.4 GHz proprietary radio driver
• Suitable for systems requiring compliance with the following radio frequency regulations: ETSI EN 300 328, EN 300 440, FCC CFR47 part 15, ARIB STD-T66

Applications Of BLUENRG-345MT

• Fitness,wellness and sports
• Healthcare, consumer medical
• Security/proximity

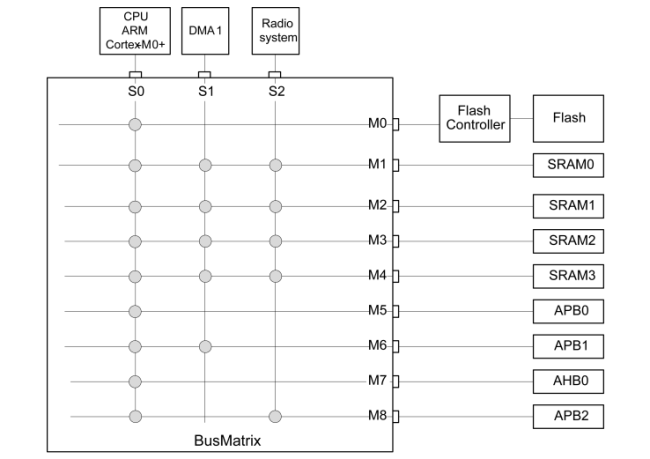

Bus Matrix Of BLUENRG-345MT
