IC RF MCU BLUENRG-345MC Low Energy Wireless System-On-Chip 48-TFQFN Exposed Pad

Product Description Of BLUENRG-345MC

BLUENRG-345MC embeds an Arm® Cortex® M0+ microcontroller that can operate up to 64MHz and the BlueNRG core coprocessor (DMA based), for BT Low Energy timing critical operations.

Specification Of BLUENRG-345MC

Features Of BLUENRG-345MC

• Ultra-low power radio performance
• 10nA in SHUTDOWN mode (1.8V)
• 0.6µA in DEEPSTOP mode (with external LSE and BLE wake-up sources, 1.8V)
• 0.9µA in DEEPSTOP mode (with internal LSI and BLE wake-up sources, 1.8V)
• 4.3mA peak current in TX (@ 0dBm, 3.3V)
• 3.4mA peak current in RX (@ sensitivity level, 3.3V)
• High performance and ultra-low power Cortex-M0+ 32-bit, running up to 64MHz
• Dynamic current consumption: 18µA/MHz
• Operating supply voltage: from 1.7V to 3.6V
• -40ºC to +105ºC temperature range

Applications Of BLUENRG-345MC

• Security/proximity
• Remote control

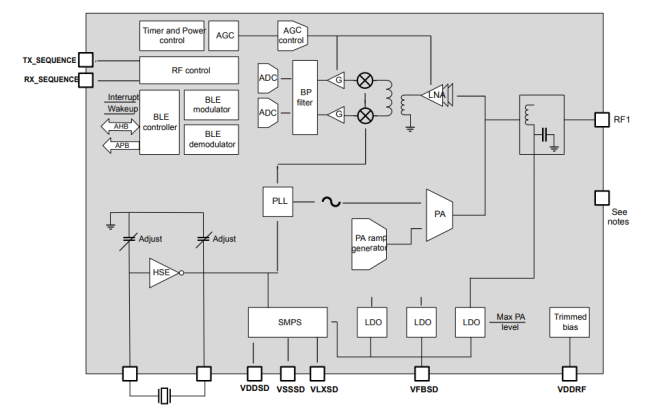

RF Block Biagram Of BLUENRG-345MC
