Product Description Of FF6MR12KM1PHOSA1
FF6MR12KM1PHOSA1 is 62mm C-Series module with CoolSiC™ Trench MOSFET and pre-applied Thermal Interface Material.
Specification Of FF6MR12KM1PHOSA1
| Part Number | FF6MR12KM1PHOSA1 |
|
Configuration
|
2 N-Channel (Half Bridge)
|
|
Drain to Source Voltage (Vdss)
|
1200V (1.2kV)
|
|
Current - Continuous Drain (Id) @ 25°C
|
250A (Tc)
|
|
Rds On (Max) @ Id, Vgs
|
5.81mOhm @ 250A, 15V
|
|
Vgs(th) (Max) @ Id
|
5.15V @ 80mA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
496nC @ 15V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
14700pF @ 800V
|
|
Mounting Type
|
Chassis Mount
|
|
Package / Case
|
Module
|
|
Supplier Device Package
|
AG-62MM
|

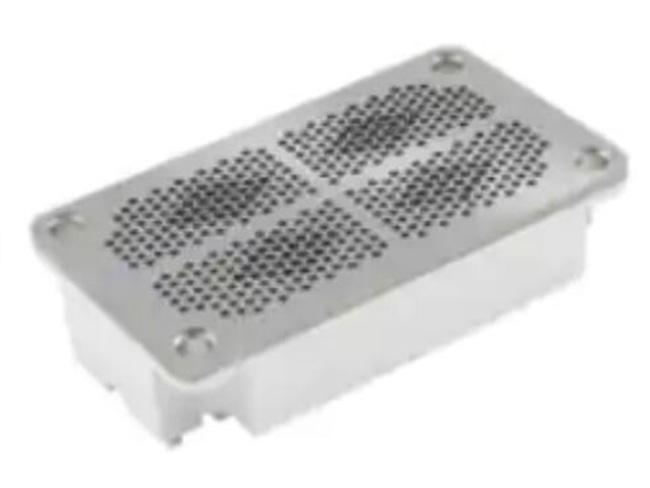

Package Photo Of FF6MR12KM1PHOSA1
