16 Channel Ultrasound AFE AFE58JD28ZAV 14-Bit 65-MSPS Or 12-Bit 80-MSPS ADC

Product Description Of AFE58JD28ZAV

The AFE58JD28ZAV device is a highly-integrated, analog front-end (AFE) solutions specifically designed for ultrasound systems where high performance, low power, and small size are required.

Product Attributes Of AFE58JD28ZAV

Features Of AFE58JD28ZAV

• 16-Channel AFE for Ultrasound Applications: Optimized Signal Chains for TGC and CW Modes
• Four Programmable TGC Profiles
• Low-Noise Amplifier (LNA) With:
• Programmable Gain: 21 dB, 18 dB, and 15 dB
• Linear Input Signal Amplitude: 0.37 VPP, 0.5 VPP, and 0.71 VPP
• Voltage-Controlled Attenuator (VCAT): Attenuation Range: 0 dB–36 dB
• Programmable Gain Amplifier (PGA): 18 dB–27 dB in Steps of 3 dB
• 3rd-Order, Linear-Phase, Low-Pass Filter (LPF): Cutoff Frequency From 10 MHz to 30 MHz
• ADC Modes (Idle-Channel SNR): 14-Bit, 65-MSPS Mode: 75-dBFS/12-Bit, 80-MSPS Mode: 72-dBFS
• Optimized for Noise and Power: TGC Mode: 102 mW/Ch at 0.8 nV/√Hz,
• 65-MSPS, 14-Bit Output
• CW Mode: 63 mW/Ch
• Excellent Device-to-Device Gain Matching: ±0.4 dB (Typical)
• Fast and Consistent Overload Recovery
• Continuous Wave (CW) Path With: Low Close-In Phase Noise of –159 dBc/Hz at 1-kHz Frequency Offset off 2.5-MHz Carrier
• Phase Resolution: λ / 16
• Supports 16x and 8x CW Clocks
• 12-dB Suppression of 3rd and 5th Harmonics
• Digital I/Q Demodulator: Fractional Decimation Filter M = 1 to 63 With
• Increments of 0.25
• Data Throughput Reduction After Decimation
• On-Chip RAM With 32 Preset Profiles
• LVDS Interface With a Speed Up to 1 Gbps
• 5-Gbps JESD Interface: JESD204B Subclass 0, 1, and 2/2, 4, or 8 Channels per JESD Lane
• Small Package: 15-mm × 15-mm NFBGA-289

Applications Of AFE58JD28ZAV

• Medical Ultrasound Imaging
• Nondestructive Evaluation Equipment
• Sonar Imaging Equipment

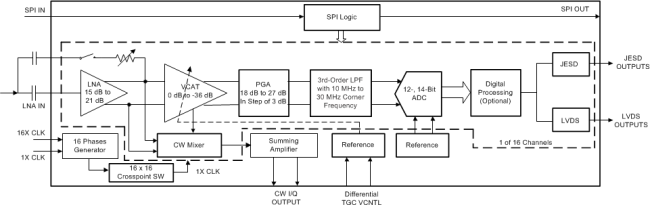

Simplified Block Diagram Of AFE58JD28ZAV
