Gate Drivers L9305EP Automotive 4-Channel Valve Driver HSSOP36 Integrated Circuit Chip
Gate Drivers L9305EP Automotive 4-Channel Valve Driver HSSOP36 Integrated Circuit Chip
Product Description Of L9305EP
L9305EP is a configurable, monolithic solenoid driver IC designed for the control of linear solenoids for automatic transmission, electronic stability control, and active suspension applications.
Specification Of L9305EP
| Part Number: | L9305EP | Package: | HSSOP36 |
|---|---|---|---|
| Max Driver RDSON: | 375 MΩ @ 175 °C | Current Accuracy (In Extended Range): | ± 15 MA In 0 To 0.3 A Range |
| Current Accuracy (In Normal Range): | ± 5 MA In 0 To 0.5 A Range | Operating Junction Temperature Range: | -40 °C To +175 °C |
Features Of L9305EP
- 4-channel independent current controlled drivers
- Integrated current sense path
- Max driver RDSON 375 mΩ @ 175 °C
- 13-bit current set-point resolution
- Variable and fixed frequency current control
- Programmable dither function
- Selectable driver slew rate control
- 32-bit SPI communications with 5-bit CRC message verification

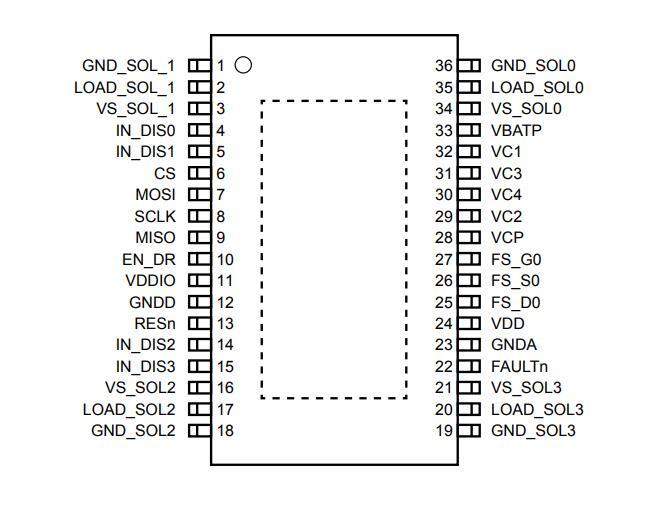

Pinout Diagram Of L9305EP
