LMG3425R030RQZR Gan Fet Gate Driver VQFN54 Integrated Half Bridge Gan Driver

Gate Drivers LMG3425R030RQZR GaN FET with integrated driver and ideal diode mode VQFN54

Description

LMG342xR030 GaN FET with integrated driver and protection enables designers to achieve new levels of power density and efficiency in power electronics systems.The LMG342xR030 integrates a silicon driver that enables switching speed up to 150 V/ns. TI’s integrated precision gate bias results in higher switching SOA compared to discrete silicon gate drivers. This integration, combined with TI's low-inductance package, delivers clean switching and minimal ringing in hard-switching power supply topologies. Adjustable gate drive strength allows control of the slew rate from 20 V/ns to 150 V/ns, which can be used to actively control EMI and optimize switching performance. The LMG3425R030 includes ideal diode mode, which reduces third-quadrant losses by enabling adaptive dead-time control.

Specifications

Applications

• High density industrial power supplies
• Solar inverters and industrial motor drives
• Uninterruptable power supplies
• Merchant network and server PSU
• Merchant telecom rectifiers​

Features

• Qualified for JEDEC JEP180 for hard-switching topologies
• 600-V GaN-on-Si FET with Integrated gate driver
• Integrated high precision gate bias voltage
• 200-V/ns CMTI
• 2.2-MHz switching frequency
• 30-V/ns to 150-V/ns slew rate for optimization of switching performance and EMI mitigation
• Operates from 7.5-V to 18-V supply
• Robust protection
• Cycle-by-cycle overcurrent and latched shortcircuit protection with < 100-ns response
• Withstands 720-V surge while hard-switching
• Self-protection from internal overtemperature and UVLO monitoring
• Advanced power management
• Digital temperature PWM output
• Ideal diode mode reduces third-quadrant losses in LMG3425R030

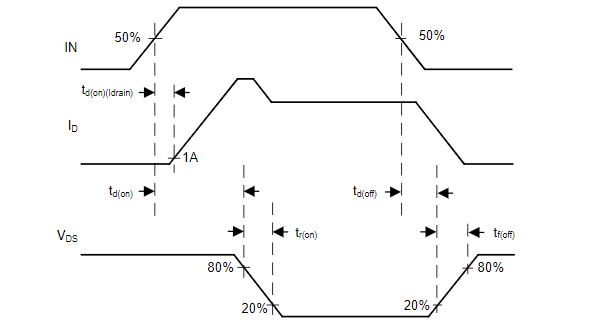

Measurement to Determine Propagation Delays and Slew Rates
