GaNFast Power IC NV6123 650V Load Drivers IC 300mOhm QFN30 Power Distribution Switches

Product Description

NV6123 is a thermally-enhanced version of the popular NV6113 650 V GaNFast™ power IC, Monolithic integration of FET, drive and logic creates an easy-to-use ‘digital in, power out’ high performance powertrain building block, enabling designers to create the fastest, smallest, most efficient integrated powertrain in the world.

Specification Of NV6125

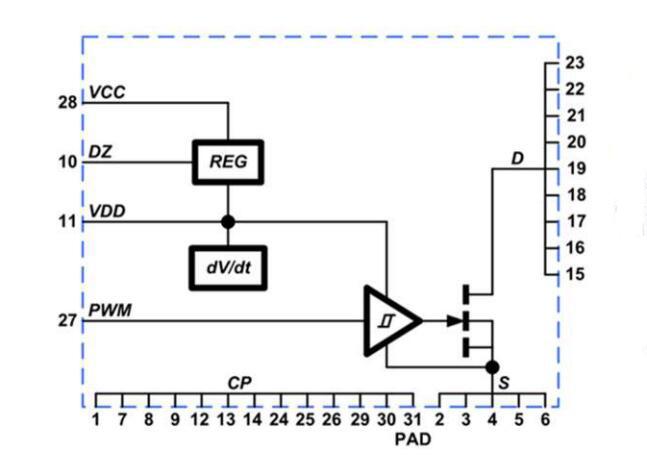

Internal Schematic

Features

• Thermally-enhanced version of NV6115
• Large cooling pad
• 2 MHz operation
• Enhanced thermals when using CS resistor
• Programmable turn-on dV/dt
• Small, low-profile SMT QFN
• 6 x 8 mm footprint, 0.85 mm profile
• Minimized package inductance
• Low 175 mΩ resistance
• Wide VCC range (10 to 30 V)
• Zero reverse recovery charge
• ESD protection – 2 kV (HBM), 1 kV (CDM)
• Monolithically-integrated gate drive
