1200mm LED Tube Bracket 18W Integrated LED Tube For Commercial Lighting
LED Tube T8 1200mm 18W T5 LED Tube Light T5 T8 Integrated LED Tube
The difference between T5 intergrated tube and T8 intergrated tube:

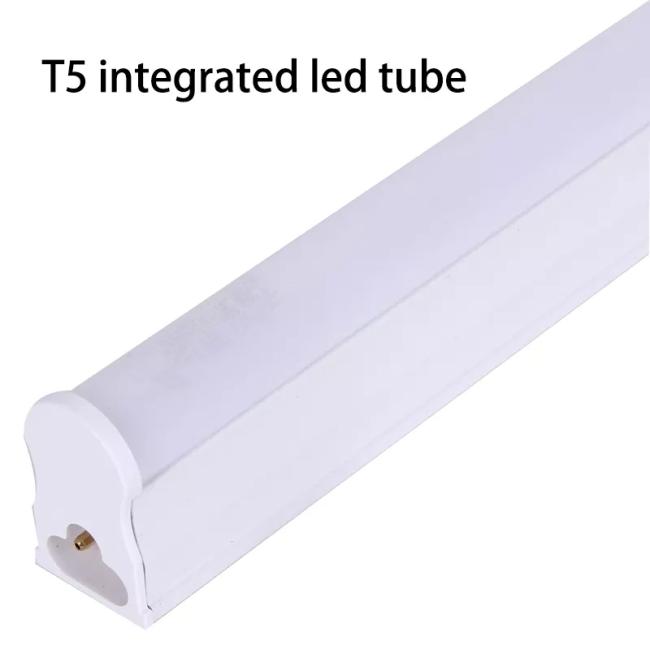

T5 integrated tube diameter is smaller than T8 integrated tube, its light-emitting area is small, but its light is concentrated, it is commonly used for trenches of ceiling, showcase.
T8 integrated tube diameter is larger than T5, its light-emitting area is large, it is commonly used for indoor lighting, home, it is the most commom LED tube.
The difference between T8 integrated tube and T8 tube:

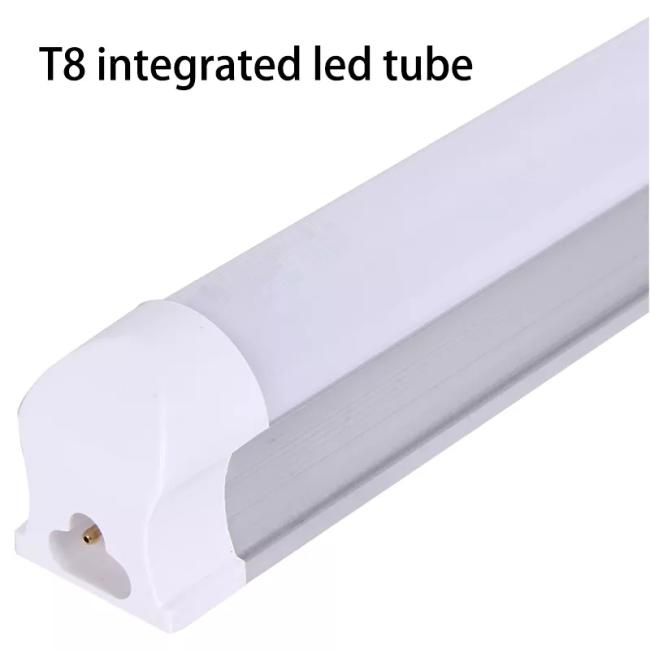

T8 integrated tube: Tube and bracket are connected, they are integrated;

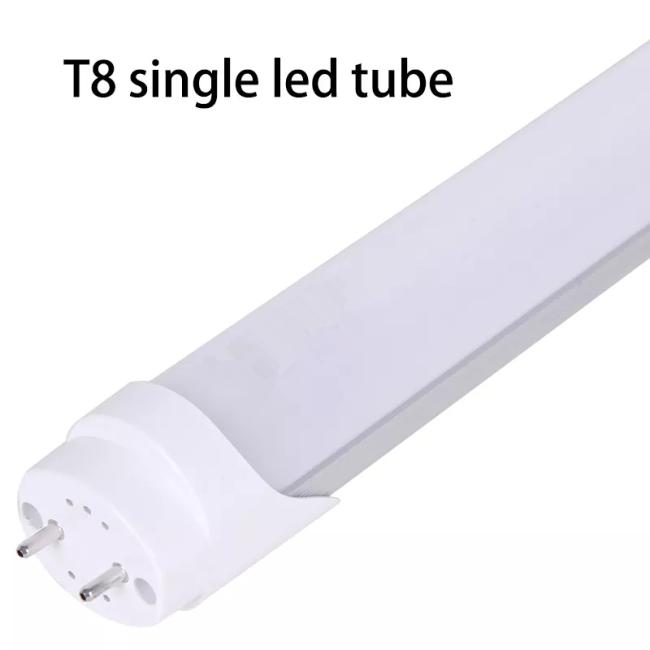

T8 tube: only have a tube, not have the bracket, not have the mounting accessories, which need to match up with led tube bracket as one complete set.
| Watt | LED chips | Luminous flux | Weight (kg) | Carton size(mm) | Color Temperature |
| 30cm 6w | SMD2835*24 | 450lm | 0.08 | 375*205*165 | 6500K/3000K |
| 60cm 9w | SMD2835*46 | 700lm | 0.13 | 645*200*160 | 6500K/3000K |
| 90cm 13w | SMD2835*70 | 1000lm | 0.18 | 940*200*160 | 6500K/3000K |
| 100cm 16w | SMD2835*84 | 1300lm | 0.213 | 1035*200*160 | 6500K/3000K |
| 120cm 18w | SMD2835*96 | 1480lm | 0.23 | 1240*200*160 | 6500K/3000K |
| Watt | LED chips | Luminous flux | Weight (kg) | Carton size(mm) | Color Temperature |
| 60cm 9w | SMD2835*46 | 700lm | 0.17 | 650*245*190 | 6500K/3000K |
| 90cm 13w | SMD2835*70 | 1000lm | 0.24 | 950*245*190 | 6500K/3000K |
| 120cm 18w | SMD2835*96 | 1480lm | 0.29 | 1250*245*190 | 6500K/3000K |
| Watt | LED chips | Luminous flux | Weight (kg) | Carton size(mm) | Color Temperature |
| 60cm 9w | SMD2835*46 | 700lm | 0.15 | 630*220*160 | 6500K/3000K |
| 90cm 13w | SMD2835*70 | 1000lm | 0.21 | 940*220*170 | 6500K/3000K |
| 120cm 18w | SMD2835*96 | 1480lm | 0.26 | 1250*220*180 | 6500K/3000K |
