Aluminum Base LED Tube Bracket 1.2M Frosted Shell Batten Light Fixture
Aluminum Base Led Batten Light Led Tube 1.2M Batten Light Fixture
Key Words of LED Batten Light:

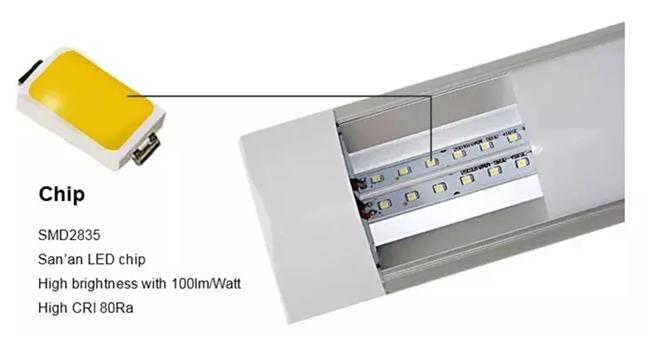

High brightness with 100lm/W, SMD2835, San'an LED Chip;

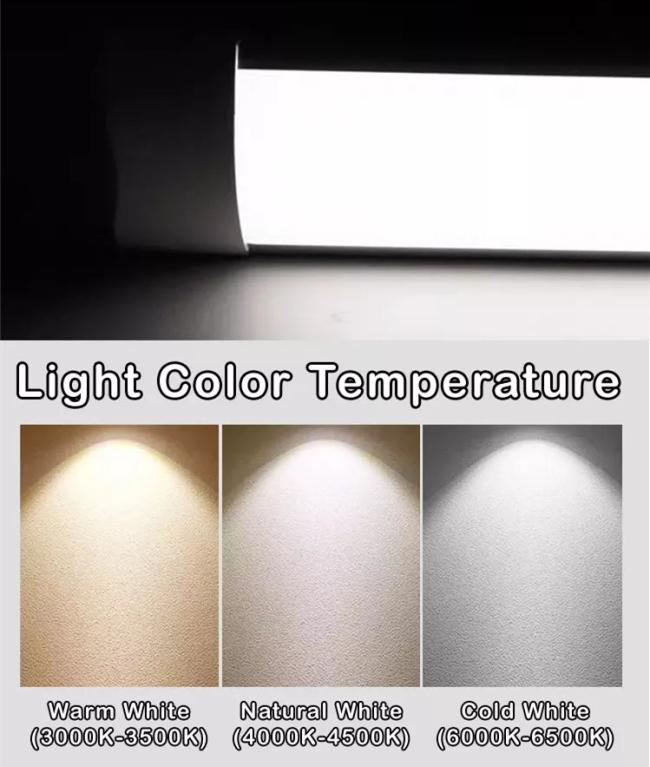

High CRI 80Ra, long life, pure color temperature;

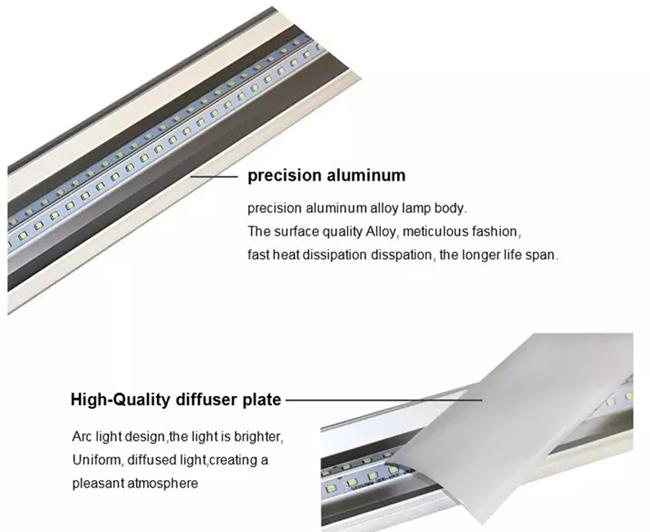

Precision aluminum alloy lamp body, the surface quality alloy, meticulous fashion;
Fast heat dissipation, the longer life span;
High quality diffuser plate: arc light design, the light is brighter, uniform, diffused light, creating a pleasant atmosphere;
Metal buckle: convenient and quick installation, mounted ceiling and hanging double use.
Our advantages:
8 years of experience of led linear light;
Owns a factory with area of 28,000 square meters;
There are more than 100 professional employees;
We have all testing machines to guaranty the quality;
Obtained CE/EMC/ROHS Certificates;
Output is more than 10 millions dollars per year;
Our products are selling well in more than 60 countries;
Focus on export business.
Parameters of LED Batten Light / LED Linear Light:
| Model | Power | PF | CCT | Lumens | Size |
| ZK-TU-104-18W | 18W | >0.95 | 3000/4000/6500K | 1800Lm | 1200*75*22mm |
| ZK-TU-104-20W | 20W | >0.95 | 3000/4000/6500K | 2000Lm | 1200*75*22mm |
| ZK-TU-104-22W | 22W | >0.95 | 3000/4000/6500K | 2200Lm | 1200*75*22mm |
| ZK-TU-104-24W | 24W | >0.95 | 3000/4000/6500K | 2400Lm | 1200*75*22mm |
| ZK-TU-104-28W | 28W | >0.95 | 3000/4000/6500K | 2800Lm | 1200*75*22mm |
| ZK-TU-104-36W | 36W | >0.95 | 3000/4000/6500K | 3600Lm | 1200*75*22mm |
| ZK-TU-104-40W | 40W | >0.95 | 3000/4000/6500K | 4000Lm | 1200*105*28mm |
| ZK-TU-104-42W | 42W | >0.95 | 3000/4000/6500K | 4200Lm | 1200*105*22mm |
LED Batten Light VS Traditional Tube Light:
| 8W led tube | 800Lm | = | traditional 25W tube | = | 16W CFL bulb |
| 12W led tube | 1200Lm | = | traditional 30W tube | = | 20W CFL bulb |
| 18w led tube | 1800Lm | = | traditional 45W tube | = | 30W CFL bulb |
| 22w led tube | 2200Lm | = | traditional 60W tube | = | 40W CFL bulb |
| 24w led tube | 2400Lm | = | traditional 60W tube | = | 50W CFL bulb |
Photos of Led Batten Light 4ft:
