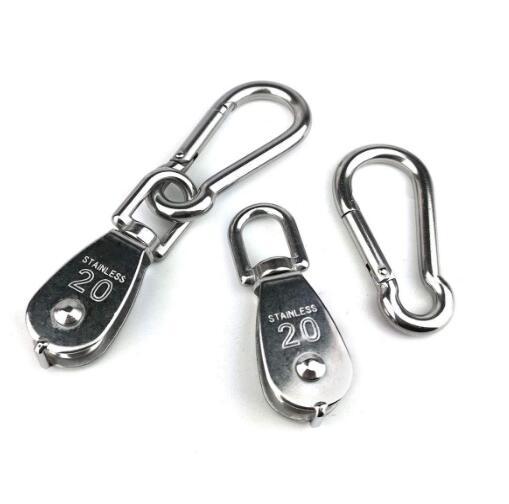

Stainless Steel Single Wheel Swivel Eye Pulleys Lifting Pulley Block
Swivel Eye Pulley Stainless steel Single Wheel swivel Eye Pulleys Lifting Pulley Block
1. Products details:
Stainless Steel:This indicates that the pulley is made from stainless steel, a corrosion-resistant and durable material. Stainless steel is often chosen for applications that involve exposure to moisture, chemicals, or outdoor environments.
Single Wheel:The pulley features a single wheel, which is the rotating part of the pulley that the lifting or rigging line runs over. Single-wheel pulleys are commonly used for straightforward lifting tasks.
Swivel Eye:The pulley has a swivel eye attachment point. A swivel eye allows the pulley to rotate freely, preventing the lifting line from twisting or tangling as the load is lifted or moved.
Pulleys:This term indicates that the product includes one or more pulleys. Pulleys are used to redirect the direction of force and provide mechanical advantage in lifting and rigging operations.
Lifting Pulley Block:This indicates that the pulley is designed for lifting and rigging purposes. A pulley block, also known as a snatch block or pulley tackle, is a combination of one or more pulleys mounted within a housing. It's used to increase the mechanical advantage of lifting heavy loads.
Product name: Single Swivel Eye Pulleys
Material: Zinc alloy , steel, stainless steel , nylon and so on
Size: Various size can be produced, special specification can be produced according to sample or drawings.
MOQ: 2000 pcs each size each color
Usage: For Outdoor
Grade (quality ) : Eco-friendly material+ Top class plating finishing
Style: Hot sale size or customized
Samples: Samples are available if freight cost afforded.
Customized Logo: Laser, engrave, silk-screened printing, paper sticker with expoxy coated, etc.
Packaging Details: PP bag/blister package in carton box, then in pallet / gunny bag/ PP bag. or as per client's request
Finishing color: Customer request
Term of Payment: T/T/cash. 30% T/T IN ADVANCE AND 70% AGAINST COPY OF BL WITHIN 7 DAYS
FOB Port: shanghai/ningbo/guangzhou
Delivery: 15-30days(we need to go through 5checks examination)
Single wheel Fixed eye Pulley
| ART No | A(Inch) | B(mm) | NW(g) |
| 7310B-25mm | 1'' | 52mm | 54 |
| 7310B-38mm | 1-1/2'' | 81mm | 126 |
| SIZE | D | L | L1 |
| 1/2'' | 1/2'' | 1-5/8'' | 11/32'' |
| 3/4'' | 3/4'' | 1-5/8'' | 1/4'' |
| 1'' | 1'' | 2-1/8'' | 3/8'' |
| 1-1/4'' | 1-1/4'' | 3'' | 1/2'' |
| 1-1/2'' | 1-1/2'' | 3'' | 13/32'' |
| 2'' | 2'' | 3-7/8'' | 9/16'' |

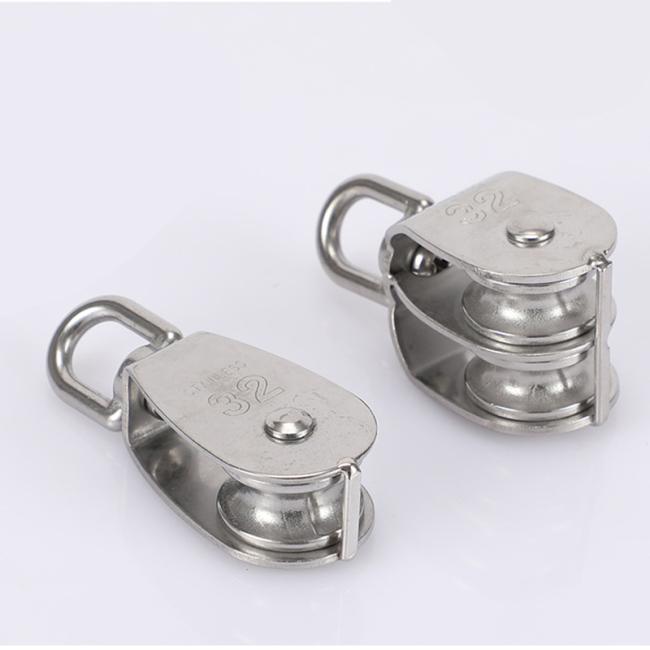

Double wheel zinc alloy pulley
| SIZE | D | L1(Shell Length) | GM/PC |
| 1/2'' | 1/2'' | 11/32'' | 24 |
| 3/4'' | 3/4'' | 1/4'' | 36 |
| 1'' | 1'' | 3/8'' | 69 |
| 1-1/4'' | 1-1/4'' | 1/2'' | 115 |
| 1-1/2'' | 1-1/2'' | 13/32'' | 140 |
| 2'' | 2'' | 9/16'' | 282 |
Single Wheel Zinc Alloy Pulley
| SIZE | D | L1(Shell Length) | GM/PC |
| 1/2'' | 1/2'' | 11/32'' | 19 |
| 3/4'' | 3/4'' | 1/4'' | 27 |
| 1'' | 1'' | 3/8'' | 47 |
| 1-1/4'' | 1-1/4'' | 1/2'' | 80 |
| 1-1/2'' | 1-1/2'' | 13/32'' | 95 |
| 2'' | 2'' | 9/16'' |
166 |
