Pharmaceutical Granulation Equipments , Powder Granulator Machine For Food
Pharmaceutical Food Chemical Medicine Protein Solid Beverage Dietary Supplements Fluid Bed Granulating Machine
Simple Description
Fluid bed granulator is also called one step granulating machine, it is the use of adhesive bonding effect, make mutual bridge between solid powder, reunion, and gradually formed particles.
Operating

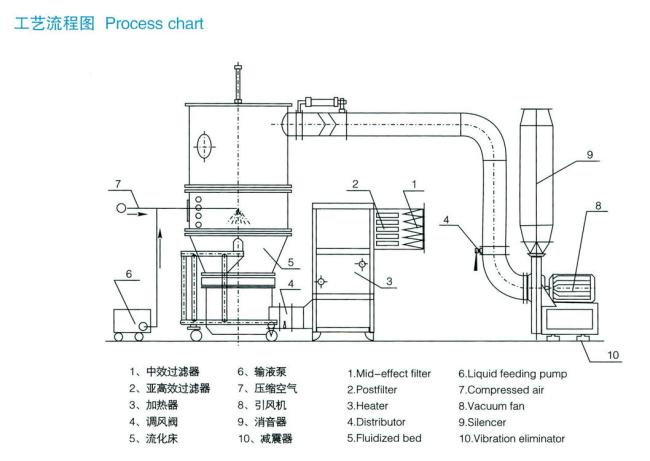

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
2.Granulation: Tablet particles, granule particles, capsule particles.
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.
Features
1,The structure of fluid bed is round so as to avoid dead corner；
2,Fluidized drying,heat mass transfer is fast；
3,Operate under closed and negative pressure,no dust flying；

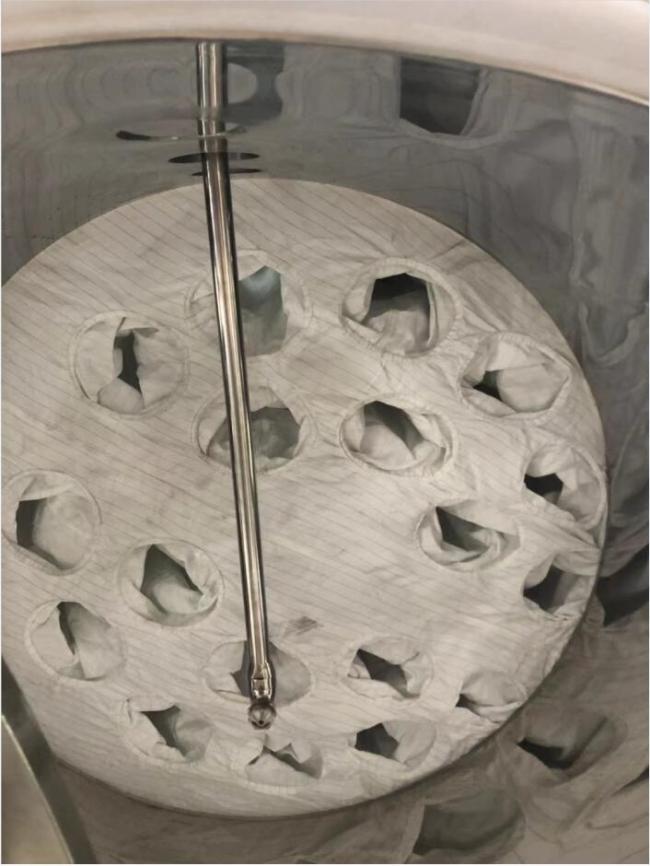

4,Adopt antistatic filter material,operate safety；
5,Meet the GMP specification requirement；
6,The drying speed is fast and the temperature is uniform. In general the drying time is 15-45 minutes for minutes for each batch.
Technical parameters
| Spec. | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
| ltem | unit . | ||||||||||
| Container of raw material Production capacity |
dim. | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
| Min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 | |
| Max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| Consume of steam | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
| Amount of compressed air | m³/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| Temperature | ºC | Adjustable from ambient to 120 | |||||||||
| Cllection rate | % | >99 | |||||||||
| Time of operation | min | 15-30(Depends on material) | |||||||||
| Content ol final product | % | ~0.2(Depends on materil) | |||||||||
| Noise | dB | ≤75 | |||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
