China SUS304 SUS304L Spray Dry Tower , Large Spray Dryer Ceramic Industry for sale

SUS304 SUS304L Spray Dry Tower , Large Spray Dryer Ceramic Industry

Price Negotiable

Price: $8,999.00(1 - 4 Sets) $7,999.00(>=5 Sets)

MOQ: 1.0 Sets

Delivery Time: 5-8 work days

Brand: Melton

Product Description

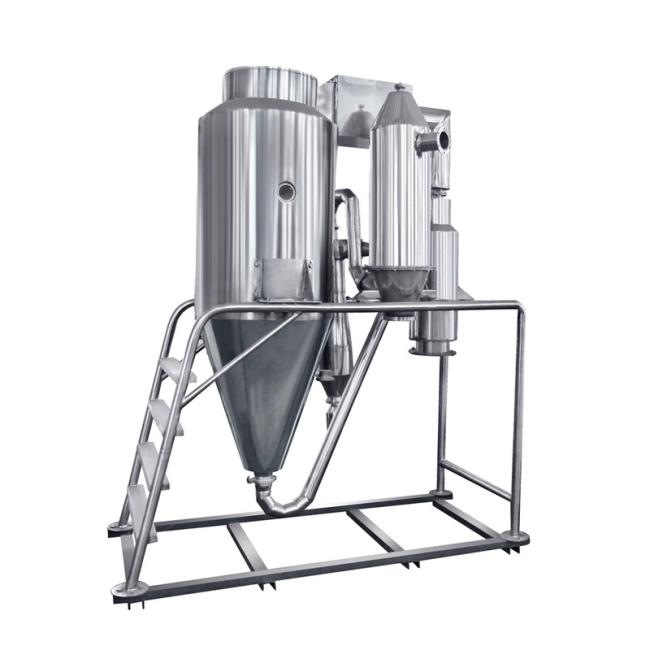

Ypg Series Pressure Spray Dryer for Food Industry, Medicine, Plastics and Resin, Chemical Industry

Products Description

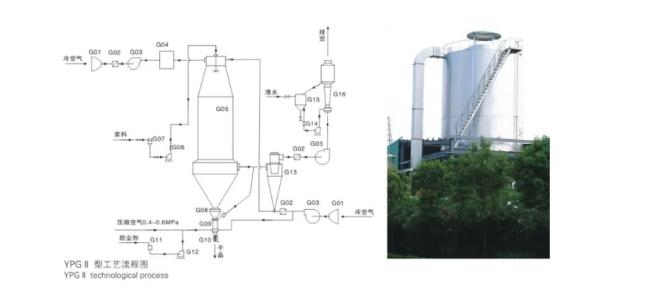

YPG Pressure Spray Dryer is an apparatus that can finish drying and granulating at the same time. The needed ball granule with certain size and ratio can be gotten in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.The working of this set is as follows: the liquid of raw material is pumped in through diaphragm pump. The liquid of raw material be atomized into tiny droplets. Then it gathers with hot air and falls off. Most parts of powder material will be collected through the outlet of discharged at the bottom. The wasted air and fine powder will be collected through collector at the bottom of cyclone. At the outlet it can also be equipped with two grades of duster. Its ratio of recovery can be above 99%.

Technical Specifications

model	unit	50	100	150	200	300	500	1000
Water evaporation	kg	50	100	150	200	300	500	1000
Dimensions(Ф×H)	mm	1600×8900	2000×11500	2400×13500	2800×14800	3200×15400	3800×1880	4600×22500
High pressure pump pressure	mPa	2～10
power	KW	8.5	14	22	24	30	82	30
Inlet air temperature	^oC	140～350
Product moisture content	%	＜5(Reachable0.5)
Material recovery	%	＞97
Electric heating	KW	75	120	150	When the temperature is lower than 200, according to actual technology
Electricity plus steam	Mpa+KW	0.5+54	0.6+90	0.6+108
Hot stove	Kcal/h	100000	150000	200000	300000	400000	500000	1200000

★The above evaporation capacity is the upper limit of evaporation capacity.

Application

Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials,Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs,Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Advantage

Material:SS304, SS316L, Titanium, Hastelloy,

This machine uses the new developed three-stream type air sprayer that has a good liquid-air contact, spraying uniformly, helps .It can be easily operated due to its simple structure. The contact of the atmosphere with the pressure spray system and hydraulic pump pillar seal is avoided. Centrifugal atomizer rotating shaft is not easy to be sealed and it is possible that material is stick and left in the centrifugal plate. The whole drying processes should be realized in the purified hot air, which protects the material from secondary pollution, well guarantees the sterile condition for material during the drying process, meet the GMP request
