High Shear Mixer Granulator , Pharmaceutical Rapid Mixer Granulator Machine
GHL Rapid Mixer Granulator/High Speed Mixing Granulator/High Shear Mixer Granulator
Description
1, GHL Series laboratory chemical high speed shear rapid recycling mixing mixer granulator pharmaceutical spices herbs fertilizer rapid mixer mixing granulator machines the new type pharmaceutical machinery, designed on the basis of adopting the principle of one-step granulator. It can blend and mix the dry powder rapidly, then the even wet powder and granulator. It meets the requirements of GMP Standard. 2,It can be widely used in pharmaceutical industry, chemical industry, foodstuff industry, powder metallurgy, cosmetic industry, dying stuff industry, and so on. 3,The advantages: high efficient; fast; even; mixing and granulating in the same chamber.
Work Principle
The blending and granulating procedures and completed in the same vessel of the granulator. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
Flow Chart
Features
1. Pneumatic bollercover automatic lift, easy close and operation.
2. Conic chamber, materials rolling evenly.
3. Open window and easy operation.
4. Touching screen with dynamic work image and vivid in operation.
5. 45-degree discharging outlet, the granules are completely discharged.
6. V-shaped granulating blade works in inclusion motion, and will keep the materials from entering the gap between V-shaped granulating blades and blades to become a corner, so it can mix evenly.
7. Interlayer jacket cooling and automatic temperature control can improve the quality of granules.
8. 36-degree Zigzag mixing paddles work in three-dimensional motion. The distance between the mixing paddles and the surface of boiler button is0.5 – 1.5mm, so it can mix evenly. There are few residues left on the boiler wall, so it can reduce friction and save 25% energy.
9. It is of labyrinth sealing construction. The rotary axel cavity can automatically spray and clean, featuring reliability in sealing and ease in cleaning.

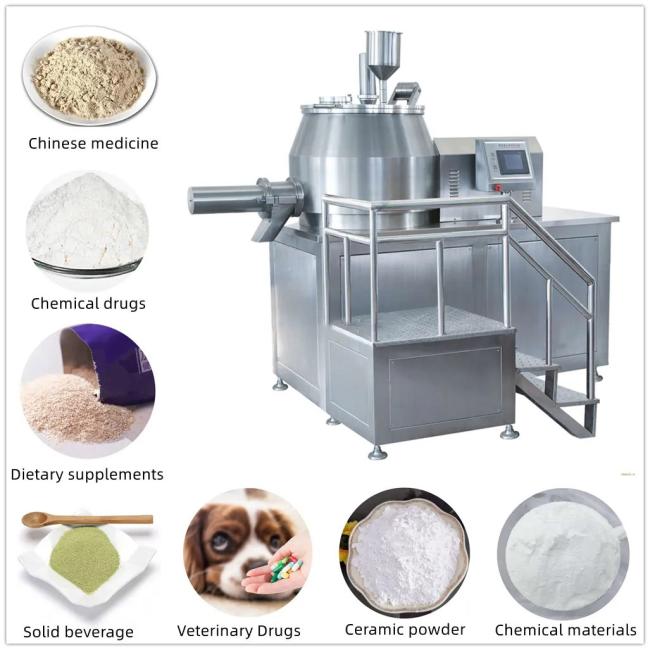

Application
The high speed mixer granulator is widely used in pharmaceutical, food, chemical and light industries. etc, to blend powdery materials and granulate.
Parameter
| Specification Item | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Capacity (Kg /batch) | 0.3-1 | 3 | 15 | 35 | 50 | 60 | 80 | 100 | 135 | 200 |
| Granules size (Mesh) | 20-80 | |||||||||
| Working time (min) | 5-7 | |||||||||
| Container volume (L) | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Mixing power (Kw) | 0.75 | 2.2 | 4/5.5 | 6.5/8 | 6.5/8 | 11/14 | 11/14 | 13/16 | 18.5/22 | 22/28 |
| Cutting power (Kw) | 0.75 | 1.1 | 1.3/1.8 | 2.4/3 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Mixing speed (r/min) | 30-1000 | 30-600 | 200/400 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Cutting speed (r/min) | 300-3000 | 1500/3000 | ||||||||
| Pressure of compressed air (Mpa) | 0.3-0.6 | |||||||||
| Consumption of compressed air (m3/min) | None | 0.1 | 0.11 | 0.13 | 0.2 | 0.25 | 0.25 | 0.3 | 0.4 | 0.4 |
| Weight (Kg) | 150 | 300 | 400 | 800 | 900 | 1200 | 1500 | 1550 | 1650 | 1800 |

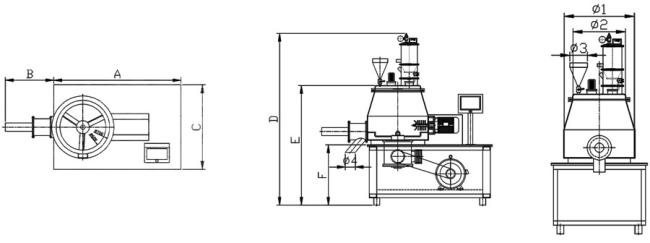

| Overall dimension of machine (L×W×H) | 800× 450× 900 | 1250× 550× 1160 | 1730× 750× 1610 | 1950× 750× 1810 | 1950× 750× 1810 | 2210× 880× 2000 | 2210× 880× 2000 | 2310× 1050× 2000 | 2485× 1080× 2050 | 2585× 1400× 2100 |
