Chili Powder Grinding Machine 100kg/H- 300kg/H Spice Crusher Machine
Price:
US $6,000-80,000 / Piece
MOQ:
1 Piece (Min. Order)
Delivery Time:
6-9 WORK
Brand:
Melton
Product Description
Resin Food Seasoning and Spice Crusher Chili Grinder Sugar Cocoa Bean Pin Mill Pulverizer Spice Universal Pulverizer

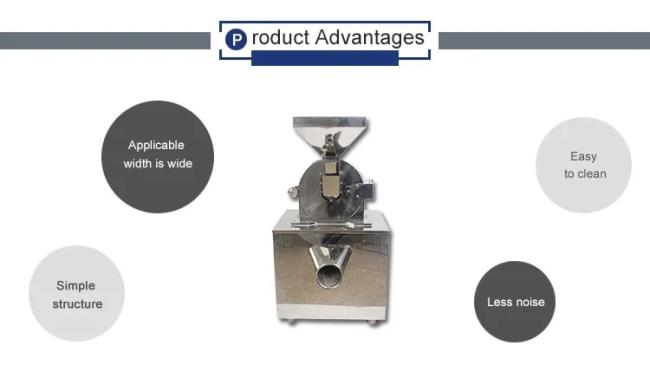

Powder grinding machine Features
1. Wide application and large handling capacity.
2. Simple and compact construction; smooth and steady running.
3. The material grinding process is fast and reliable, grinding fitness is adjustable.
4. The surface of the multifunctional grinding machine is smooth, easy to clean.
Powder grinding machine Application
1. All kinds of grains: sesame, walnut, rice, black rice, soybean, mung bean, red bean, peanut, lotus seed, corn, sorghum, barley, buckwheat, oat, etc;
2. Spice: chili, pepper, nutmeg, cinnamon, anise, basil, Cardamom, Clove, Coriander, Cumin, Mint, Mustard, Parsley,Rosemary, Turmeric etc.
3. Dry medical materials: Chinese yam, almond, poria cocos, red dates, gorgon fruit, wolfberry, CoixSeed, hawthorn, fleece-flower root, red bean, donkey-hide gelatin, frankincense, dodder, angelica sinensis, radix codonopsis, etc;
4. Other materials: ordinary chemical materials, etc.

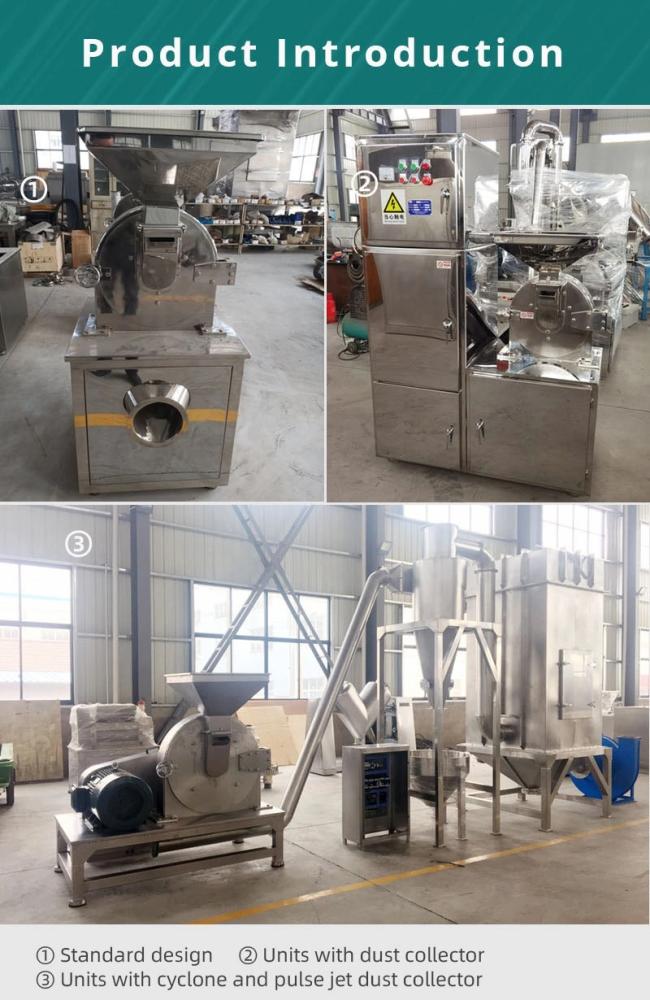

Products Description
Working Method

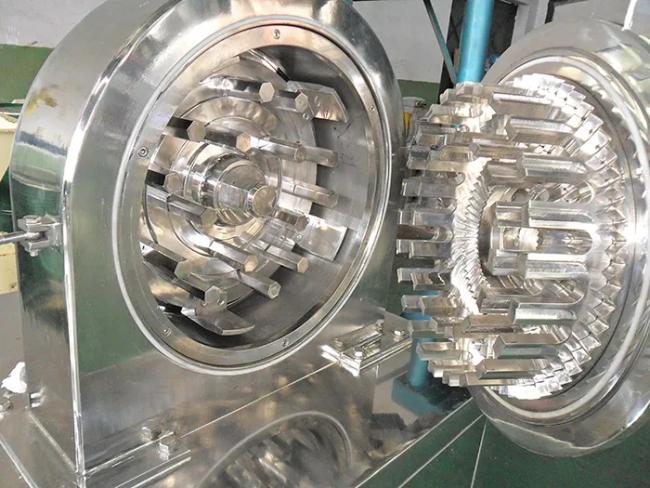

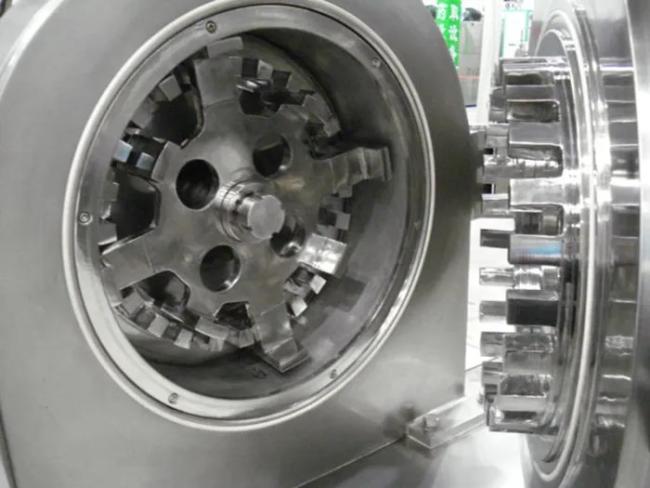

It makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.Since it features a simple structure,firm and stable operation and good crushing effect,the crushed matterials can be discharged directly apertures.Besides,the whole machine is made of stainless steel.Theinner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon dus to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements.
Technical Parameter
| Model | Prodution Capacity(kg/h) | Spindle Speed(r/min) | Size of Input Granules(mm) | Grinding Fineness(Fineness) | Grinding Motor Power(KW) | Vacuum Motor Power(KW) | Machine Dimensions(mm) |
| 20B | 60-150 | 4500 | 6 | 60-120 | 5.5 | 1.5 | 1100×600×1650 |
| 30B | 100-300 | 3800 | 10 | 60-120 | 7.5 | 1.5 | 1200×650×1650 |
| 40B | 160-800 | 3400 | 12 | 60-120 | 11 | 1.5 | 1400×700×231 |

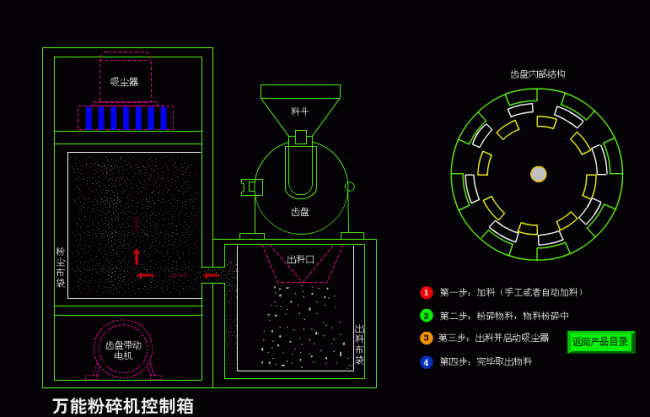

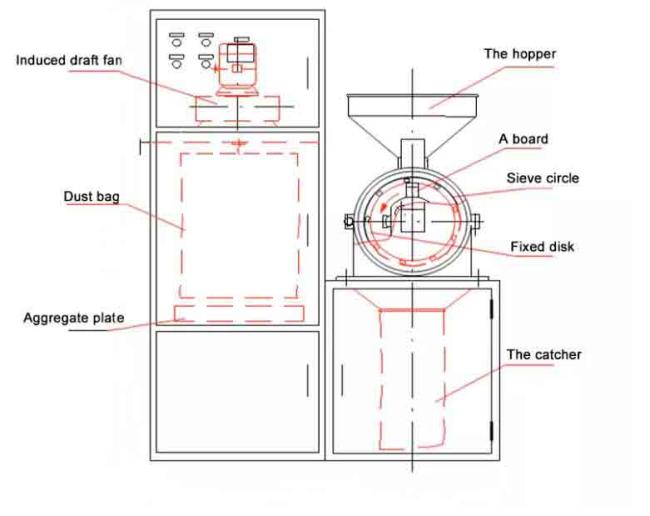

Schematic

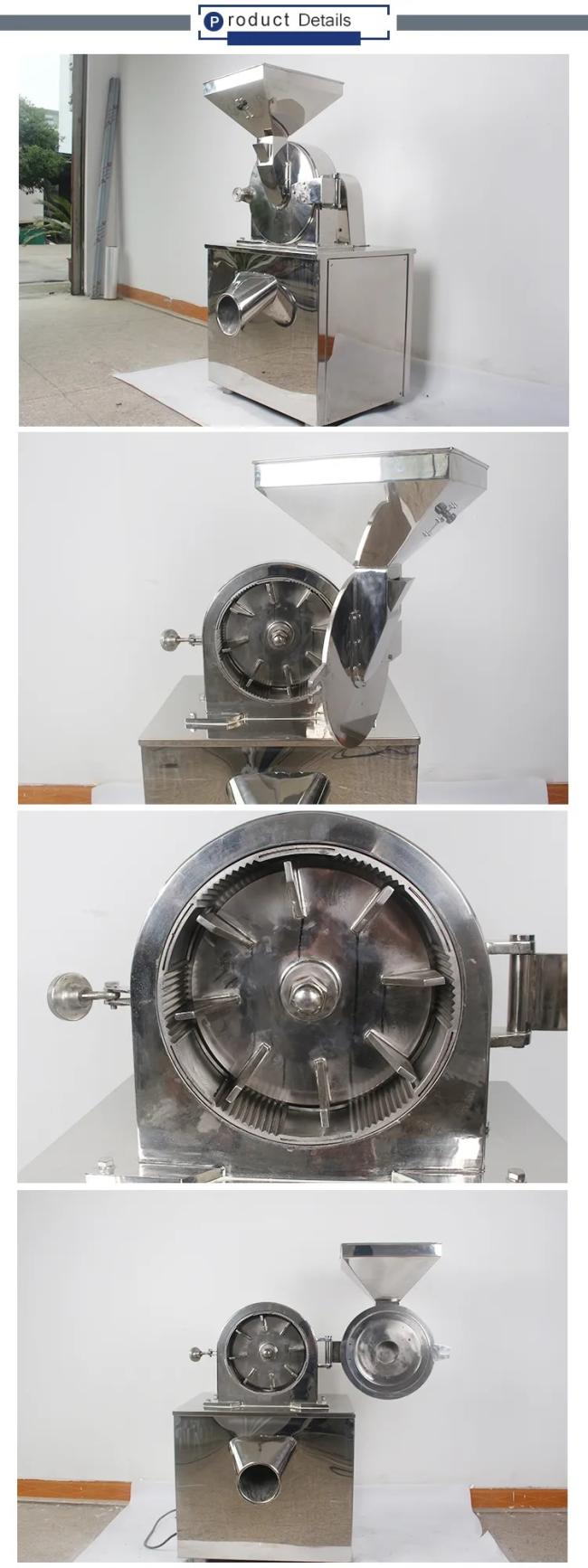

Product Details
Package & Shipping
Our Serives
