Highly P3.9-7.8 transparent LED screen for indoor and outdoor events
Highly P3.9-7.8 transparent LED screen for indoor and outdoor events
Alisen Mesh3.9-7.8mm is a high-performance flexible LED mesh screen suitable for a wide range of applications. With a high refresh rate of ≥7680 Hz and 16-bit grayscale processing, it delivers smooth, flicker-free images ideal for both live audiences and camera capture. The screen offers high reliability with an IP65 protection rating and allows for maintenance from both the front and rear. Its lightweight and thin cabinet design (merely 76mm thick), with a single cabinet weighing only 7.7 kg, facilitates quick installation, disassembly, and transportation. Featuring a pixel pitch of 3.9-7.8 mm, it produces bright and detailed images even in challenging lighting conditions. A maximum adjustable brightness of 3500 nits makes it well-suited for both indoor and outdoor use.
High Brightness
Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.
Ecnmical and Eco-friendly
The power consumption is 1/3 lower than normal screen.
Light and Slim
80mm cabinet thickness and 7.5kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.
Standard & Customized Casbinet Design
Standard cabinet design 1,000mm x 500mm brings easier installation. Meanwhile, the customized design is available.
Modular Design
The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.
Fast and Easy Installation
Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.

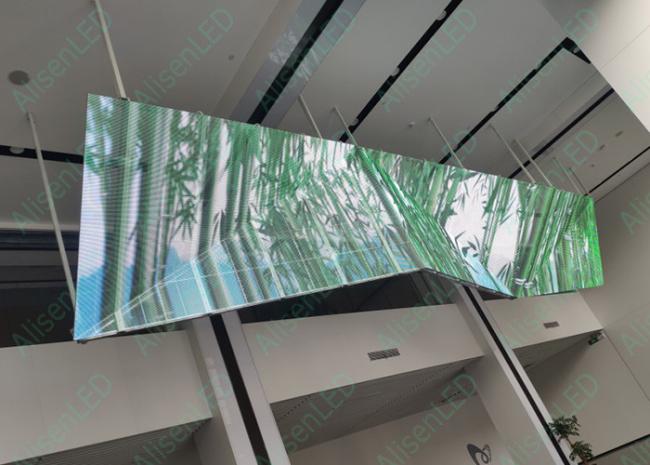

Flexibility
Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.
Application compatible with scenes
- Conference
- Exhibition
- Training
- Stage Performance
- Office Work
- Curved Wall
- Curved Design
- Round Shape
| Item | P1.9 | P2.6 | P2.9 | P3.9-7.8 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.9-7.8mm |
| Led Type | SMD1515 | SMD1515 | SMD2020 | SMD2121 |
| Module Resolution | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 128dots x 64dots |
| Driving Mode | 1/32 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Module Pixels | 16,384 dots | 9,216 dots | 7,056 dots | 8,192 dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 500mm x 250mm |
| Cabinet Size | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 1000mm x 500mm |
| Cabinet Resolution | 256dots x 256dots | 192dots x 192dots | 168dots x 168dots | 256dots x 128dots |
| Pixel Density | 262,144 dots/sqm | 147,456 dots/sqm | 112,896 dots/sqm | 65,536 dots/sqm |
| Minimum Viewing Distance | ≥1.9 m | ≥2.6 m | ≥2.9 m | ≥3.9 m |
| Brightness | 800nits ~ 1200nits | 800nits ~ 1200nits | 800nits ~ 1200nits | 4000nits ~ 5000nits |
| IP Grade | IP43 | IP43 | IP43 | IP65 |
| Refresh Rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Gray Scale | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits |
| Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° |
| Maxmum Power Consumption | 560W/sqm | 560W/sqm | 560W/sqm | 800W/sqm |
| Average Power Consumption | 160W/sqm | 160W/sqm | 160W/sqm | 240W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
