Industrial Furnace Silicon Carbide Brick Refractory Brick With Customized Shape

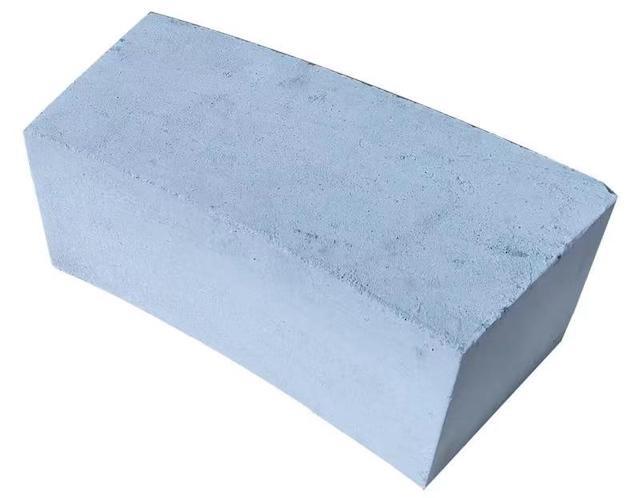

Silicon Carbide Brick Refractory Brick with Customized Shape
Silicon Bonded Sisic/ Sic plate is made of high quality synthetically made silicon carbide grains (SIC) andselected bonding components, including nitride, Si3N4 as material,After drying, sintering in high temperature furnace to form. It's Maximum service temperature is 1,550°C, and especially suitable at the long time firing between 1,200~1,550°C range.
silicon carbide brick features and advantages
1) Superior Oxidation Resistance
2) Improved Performance
3) Lowered Cost Burden
4) Longer Life Between Replacement/Rebuilds
5) Allows Lower Weight
6) Very High Thermal Conductivity
Silicon Carbide Plate Application:
SiC bonded Si3N4 plate mainly find its applications in blast furnace lining, the lining of alumina electrolytic bath and various nonferrous metal smelting, glass tank and ceramic in dustires, etc.
Index
| specification item | pledge value | practice-test value | |
| SiC % | ≥75 | 75.02 | |
| Si3N4 % | ≥18 | 21.78 | |
| Fe2O3 % | ≤0.7 | 0.53 | |
| Apparent porosity % | ≤16 | 14 | |
| Bulk density | g/cm3 | ≥2.65 | 2.75 |
| Cold crushing strength | Mpa | ≥170 | 245.9 |
| Modulus of pupture | Mpa | ≥42 | 55.7 |
| Modulus of pupture(Mpa)1400℃×0.5h | ≥45 | 58.0 | |
| W/m.k thermal conductivity | ≥16 | 19.9 | |
Packing Details
Packed by sea-worthy wooden
pallet + shrink wrapped + carton For example
Standard size of Fireclay brick : 230x114x65mm
Shipping : 384pcs/plt x 18plts in one 20ft container
