Semi Automatic Servo Feeding Overwrapper Machine Flat Seal Tray
Semi-automatic Gift Box Overwrapping Machine with Servo Feeding
Overwrapping Machine Introduction
The cellophane wrapping machine is a widely-used automatic Bopp film overwrapping machine for cartons, boxes, and cases. Cellophane wrappings are fashionable, dust-proof, value-improved for your products. Semi-automatic overwrapping machine is cost-effective suitable for smaller plant to provide production.
Technical Parameter
| Model | XQ-SW300 | |||||||||
| Packing Size | (55-320) mm × (40-230) mm × (20-110) mm | |||||||||
| Production Capacity | 15-20 packs / min | |||||||||
| Total Power | 3kw | |||||||||
| Working Voltage | 220V | |||||||||
| Compressed Air | 0.4-0.8Mpa | |||||||||
| Machine Weight | 180kg | |||||||||
| Machine Dimensions | 2000 (mm) × 800 (mm) × 1100 (mm) | |||||||||

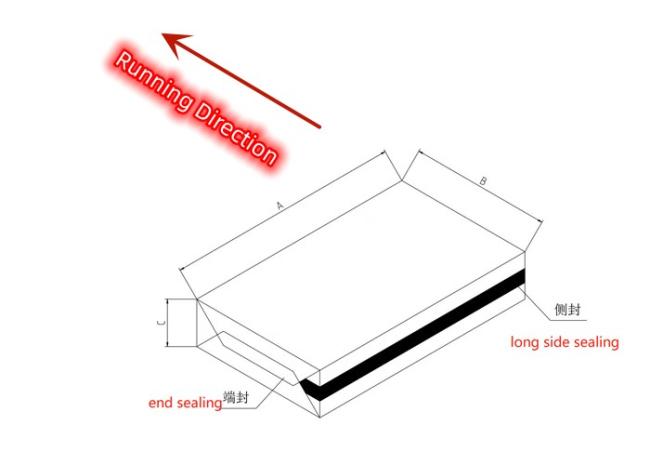

Machine Principle
Overwrapping Machine Features
Model:XQ-SW300 Semi-automatic Gift Box Overwrapping Machine with Servo Feeding
1. The specific heat shrink packaging machine greatly improves the packaging yield and decorative effect, enhances the market competitiveness of the packaged products, can greatly increase the sales volume, and increase the added value of the products.
2. Stable operation, high reliability, almost no maintenance.
3. More than 80% energy saving than the heat shrink packaging machine. You can purchase a semi-automatic transparent film packaging machine for the electricity saved in the next year.
Packing Material Requirements
| Packaging material |
BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm Width: according to box size heat-seal temperature: 100℃-150℃ |
| Drawstring |
Self-adhesive A: width: 1.2-3mm B: breaking strength: 10N-15N C: thermal shrink film: ≤2.5℅ D: diameter: 35mm E: heat-seal temperature: 100℃-150℃ |
| Packing products | The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc. |
