Full Closed POF Hot Shrink Wrapping Machine Carton Heat Tunnel Conveyor

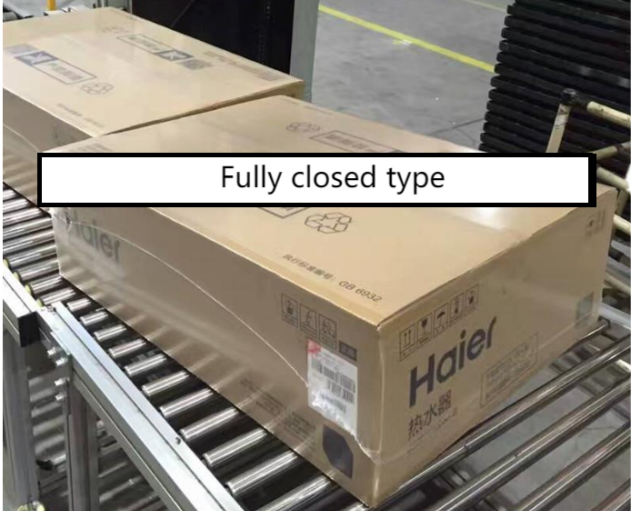

Full-closed Shrink Wrap Shrink Wrapping Machine for Carton Case
- Product description
Full-closed Shrink Wrap Shrink Wrapping Machine for Carton Case is a machine that automatically shrinks and packs products online through photoelectric detection.
The high-speed edge sealing machine can be used for fully automatic online shrink packaging of products. It adopts photoelectricity to automatically detect products. It can choose two modes of automatic feeding or manual feeding. It adopts half-folded film and can seal the other three sides. The constant temperature heating sealing and cutting system can be used to seal and cut various industrial standard heat-sealing films such as PE, PVC, POF, etc. The sealing is firm and beautiful, especially suitable for POF sealing and cutting. When the product size is changed, it is only necessary to make a simple adjustment through the handwheel, without replacing any parts, reducing the product replacement time and making it easier to operate. The speed-adjustable front-end feeding system and the back-end storage working platform make the whole machine truly realize high-speed and unmanned automatic operation.

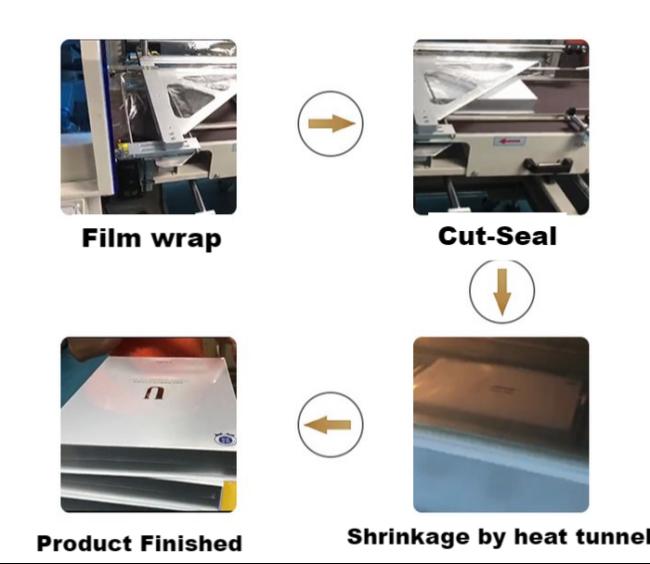

- Working Principle
- Technical Parameter
| Model | XQ-SW-405A | XQ-4525 |
| Power | 1.8kw | 16kw |
| Power Supply | AC 380V 3PH 50Hz | AC 380V 3PH 50Hz |
| Max. Packing Sizes L×W×H |
L(unlimited), W+H<=450mm,H<=150mm |
W400xH200mm |
| Tunnel Size L×W×H | / | 1500×500×300mm |
| Sealing Blade Length | 490mm | / |
| Packing Speed | 15m/min. | 0-20m/min |
| External Air Source | 6-8kg/cm2 | / |
| Shrink Film | POF | POF |
| Machine Size L×W×H | 1615×960×1550mm | 1860×985×1315mm |
| Wooden Box Size L×W×H | 1800×1050×1700mm | 1910×1035×1465mm |
| G./N. Weight | 560/520kgs | 493/453kgs |
- Product Features
· The horizontal sealing adopts the form of constant temperature knife, and the lifting type sealing and cutting;
· When the product size changes within the allowable range of the equipment, it can be easily adjusted through the equipment itself without changing any molds or fixtures;
The length of the product can be automatically detected by two sets of electric eyes in the horizontal or vertical direction, the length of the product is not limited, and products of different lengths can be produced at the same time
· Adopt PLC and touch screen, easy to operate and easy to learn, and use 5 groups of frequency converters to accurately control the transmission.
· The plexiglass safety door not only guarantees safety but also monitors the production situation.
- Product Samples
